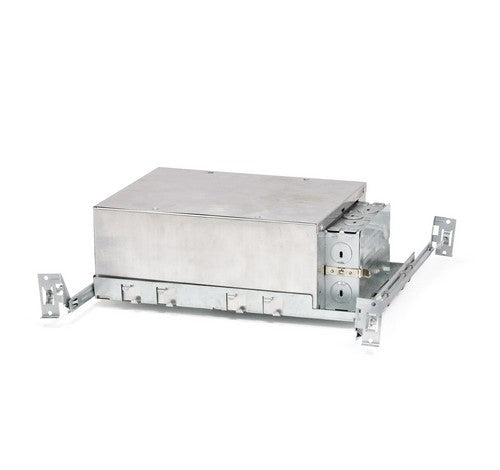

NORA Lighting NHIOICD-48LE3 4" Iolite Dedicated New Construction IC Air-Tight Housing

2 sold in last 8 hours
NHIOICD-48LE3
$58.00
$58.00
customers are viewing this product

NORA Lighting NHIOICD-48LE3

NHIOICD-48LE3 Product Description



Iolite dedicated LED New Construction housing features aluminum construction. Driver available in Triac/ELV and 0-10V dimming and 120/277V input.

FEATURES:

Over 80% energy savings when compared to incandescent
Aluminum IC & Air-Tight Rated Housings
Dimmable
LED Driver mounted on J-Box cover
5-year limited warranty
New construction housing include 24-1/2″ hanger bars w/alignment feet nail & scooted for T-Bar installation.
cULus and ENERGY STAR® listed for damp location
cULus and ENERGY STAR® listed for wet location using specific reflectors

SPECIFICATIONS

Light Source : LED, Comfort Dim
Lumen Output: 0-900lm
Aperture Size: 4"
Aperture : Square
Dimming: 0-10V, Triac / ELV
Application: Adjustable, Downlight
Construction Type: New Construction, Air-Tight IC
Options: ENERGY STAR certified
Dimensions H: 4" W: 7-5/8" L: 12"
Housing: 0.040” Aluminum shallow housing with patented driver assembly, allows for driver to slide out without tools. Extension collar is available for ceiling thickness up to 2", must specify NIO-4EXTC2.
Air Flow Restriction: Meets requirements of Air Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90˚ perpendicular to junction box if desired. "L"-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel, with seven 1/2" knockouts, four Romex® pryouts, and snap-on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out).
Electrical
Voltage: 120V or 120-277V (must specify)
Power Factor: >0.90
Operating Temp.: 104˚F (40˚C) max. ambient temp.
Wattage: 14W
Dimming: Triac / ELV or 0-10V Dimming
Emergency: Housing can be specified with connections for emergency battery installation. Requires top access. Must specify battery with remote test switch separately, NEPK-BSL17C-C2U.

About Nora Lighting

After stepping into the lighting game just a little over 20 years ago, Nora lighting has sprinted its way to the top of light fixture suppliers. With a team of the most hip design experts and engineering technologies Nora lights can add a modern, yet dependable edge to your home, job, or college dorm. Nora track lighting and recessed lighting are amongst the best available. So why not play it stylish and smart and go with Nora lighting?
Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
