NORA Lighting NHIOICD-28LE3 2" Iolite Dedicated New Construction IC Air-Tight Housing
2
sold in last
8
hours
NHIOICD-28LE3
$72.45
customers are viewing this product
PRODUCT DESCRIPTION
Iolite dedicated LED New Construction housing features aluminum construction. Driver available in Triac and 0-10V dimming and 120 / 277V input.
FEATURES:
Over 80% energy savings when compared to incandescent
Aluminum IC & Air-Tight Rated Housings
Dimmable
LED Driver mounted on J-Box cover
5-year limited warranty
New construction housing include 24-1/2″ hanger bars w/alignment feet nail & scooted for T-Bar installation.
cULus and ENERGY STAR® listed for damp location
cULus and ENERGY STAR® listed for wet location using specific reflectors
SPECIFICATIONS:
Light Source : LED, Comfort Dim
Lumen Output: 0-900lm
Construction Type: New Construction, Air-Tight IC
Dimming : 0-10V, Triac / ELV
Application: Adjustable, Downlight
Flange: Trimless
Options: ENERGY STAR certified

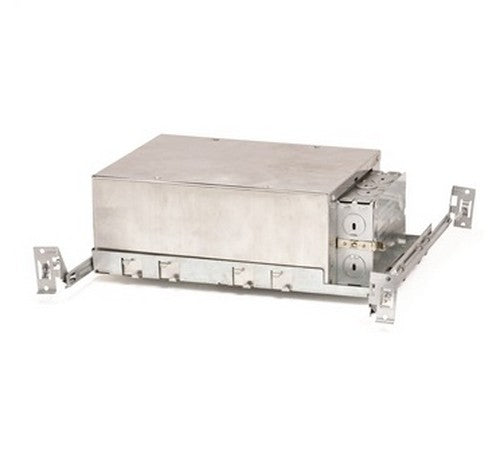

Housing: 0.040” Aluminum shallow housing with patented driver assembly, allows for driver to slide out without tools. Extension collar is available for ceiling thickness up to 2”, must specify NIO-2EXTC2.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13-3/4” to 24-1/2” adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90˚ perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064” thick galvanized steel, with seven 1/2” knockouts, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out). Access above ceiling required.
Emergency: Housing can be specified with connections for emergency battery installation. Requires top access. Must specify battery with remote test switch separately, NEPK-BSL17C-C2U.
FEATURES:
Over 80% energy savings when compared to incandescent
Aluminum IC & Air-Tight Rated Housings
Dimmable
LED Driver mounted on J-Box cover
5-year limited warranty
New construction housing include 24-1/2″ hanger bars w/alignment feet nail & scooted for T-Bar installation.
cULus and ENERGY STAR® listed for damp location
cULus and ENERGY STAR® listed for wet location using specific reflectors
SPECIFICATIONS:
Light Source : LED, Comfort Dim
Lumen Output: 0-900lm
Construction Type: New Construction, Air-Tight IC
Dimming : 0-10V, Triac / ELV
Application: Adjustable, Downlight
Flange: Trimless
Options: ENERGY STAR certified
Housing: 0.040” Aluminum shallow housing with patented driver assembly, allows for driver to slide out without tools. Extension collar is available for ceiling thickness up to 2”, must specify NIO-2EXTC2.
Air Flow Restriction: Meets requirments of Air-Tight (AT) <2CFM (cubic feet per minute) in accordance with ASTM283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Bar Hangers: Two 13-3/4” to 24-1/2” adjustable bar hangers with captive nails are included on housing. Bar hangers are parallel to junction box, but can be repositioned 90˚ perpendicular to junction box if desired. “L”-shaped bar hanger foot to align to bottom of construction joist. A T-bar notch allows for easy installation in a suspended ceiling.
Junction Box: Pre-wired 25 cubic inch 0.064” thick galvanized steel, with seven 1/2” knockouts, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out). Access above ceiling required.
Emergency: Housing can be specified with connections for emergency battery installation. Requires top access. Must specify battery with remote test switch separately, NEPK-BSL17C-C2U.
