NORA Lighting NHIOFK-1 1" New Construction flat frame With bar hangers

2 sold in last 8 hours


$12.00 $10.80
customers are viewing this product

NORA Lighting NHIOFK-1

NHIOFK-1 Product Description

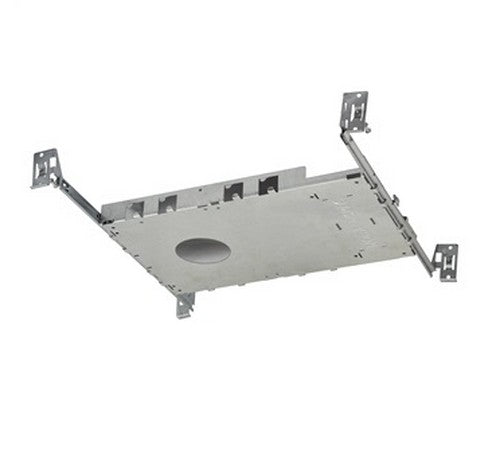

New Construction Frame-In for 1" Iolite Remodel IC AT Housing - Allows access from below. Must be used with an Iolite 1” remodel housing (NHRIOIC-16)


Frame-In Length: 13"
Frame-In Width: 8-1/4"
Cut-out: 2-3/8"
IC rated for direct contact with insulation.
Quick connect provided for electrical connection to the LED reflector
ASTM E283 for Air-Tight
Dimming down to 5%


Housing: 0.030 steel can connects to integrated 0.040 steel structural arm with junction box and driver compartment. Integral spring brackets provided. New construction flat frame available to allow access to junction box from below the ceiling, must specify NHIOFK-1.
Air Flow Restriction: Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: “IC” Insulated ceiling housings are direct contact rated. Not to be used in direct contact with spray foam insulation.
Mounting: Three high-tension tempered steel springs secure remodel housing from 1/4" (min) to 5/8" (max) thick ceiling. Hole cutout template provided for convenience.
Junction Box: Pre-wired 25 cubic inch 0.064" thick galvanized steel, with five 1/2", two 3/4" knockouts, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out).
Voltage: 120-277V
Power Factor: >0.90
Operating Temp.: 104˚F (40˚C) max. ambient temp.
Wattage: 10W
Dimming: Triac / ELV or 0-10V Dimming
Labels and listings
CULUS Listed for Damp Location
CULUS Listed for Wet Location (w/designated reflectors)
5-Year Limited Warranty
