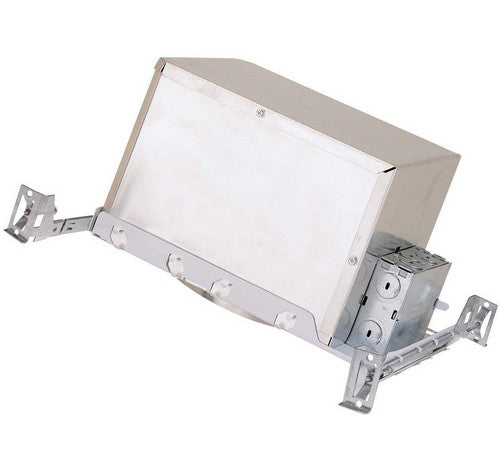

NORA Lighting NHIC-926DWQAT

NHIC-926DWQAT Product Description

IC double wall housing for sloped ceilings offers a clear path of unobstructed light from a 6/12 pitch (22-1/2 degree) ceiling to any floor or work plane. Double wall construction allows use of larger PAR38/R40 light source to deliver more illumination and provide a better finished appearance. Rated for direct contact with insulation and adjacent ceiling structures, Nora’s sloped IC housings are easy and quick to install and accept standard down light or adjustable finishing trims.

SPECIFICATIONS:

Aperture Size : 6"
Light Source : Line Voltage
Construction Type : New Construction, Air-Tight IC
Application : Sloped Ceiling

Minimum Clearances: “IC Housing is direct contact rated; no minimum clearance is required

Maximum Slope Angle: Pitch: 6/12; Angle: 22-1/2 degrees

Ceiling Thickness: Ceiling thickness varies from 5/8″ – 1-3/8″

Lamp Adjustment: Three adjustment points allow slight tilt of housing cylinder with slide and tilt adjustments for the socket.

Bar Hangers: Bar hangers are adjustable from 13-5/8″ to 24″ and can be repositioned 90 degrees

Junction Box: Contains seven 1/2″ knockouts and four ROMEX® pryouts with strain relief

Electrical: Quick connector provided

Lamp Max: 100W (actual wattage varies with trim)

Dimensions:
Length: 13″
Width: 9-1/2″
Depth: 7-3/4″
Ceiling Opening: 6-1/2″ x 7″
