NORA Lighting NHIC-427LMRAT

NHIC-427LMRAT Product Description

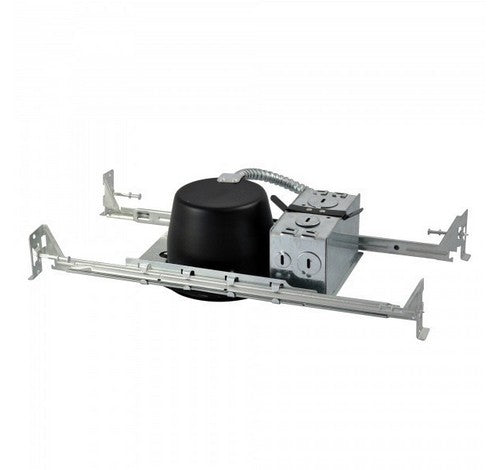

Dedicated new construction housing for use in insulated ceilings can be in direct contact with insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling. The housing is dedicated and labeled for use with Nora 4" Onyx LED reflectors.

FEATURES:

Shallow IC rated housing for direct contact with insulation
Quick connect provided for electrical connection to the LED trim
ASTM E283 for Air-Tight
ENERGY STAR® certified

SPECIFICATIONS:

Plaster Frame: High quality 0.040 steel die cut one piece frame.
Housing: 0.040 aluminum housing with riveted cap adjusts from 1/2'' to 1'' depth.
Air Flow Restriction: Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.
Clearance: ''IC'' insulated ceiling housings are direct contact rated; no minimum clearance is required.
Bar Hangers: Two 13-3/4” to 24-1/2” adjustable bar hangers with captive nails are included on frame. Hanger bars have T-Bar slot and alignment feet. Bar hangers are parallel to junction box, but can be re positioned 90º perpendicular to junction box if desired. “L” Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allows easy installation in a suspended ceiling.
Junction Box: P rewired 25 cubic inch 0.064'' thick galvanized steel, with two 1/2''. three 3/4'', and one 1-1/8'' knockouts, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4 out).
ELECTRICAL
Voltage: 120V
Wattage: Up to 10.5W
Socket: LED quick connect
Dimming: Specified by reflector
LABELS AND LISTINGS
cULus Listed for damp location & feed through (wet location when used with compatible reflectors)
WSEC ASTM E283 for Air-Tight
ENERGY STAR® certified
RoHS Compliant
Can be used to comply with 2016 Title 24 - part 6 High Efficacy LED light source requirements when used with compatible reflector
