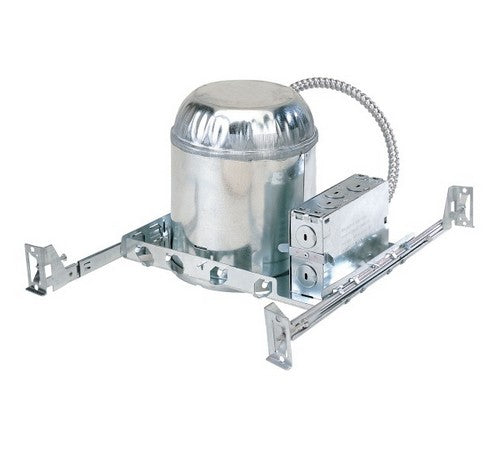

NORA Lighting NHIC-27QAT

NHIC-27QAT Product Description

New construction housing for use in shallow plenum, insulated ceilings and can be in direct contact with thermal insulation. Air-tight construction provides energy savings by reducing the flow of air through the ceiling.

FEATURES:

Low 5-1/2" profile for existing shallow ceiling plenums
Rated for direct contact with insulation
cULus listed for damp location and through branch circuit wiring
Quick connect provided
24-1/2" Bar hangers with captive nails and alignment foot
Accommodates 1-3/4" maximum ceiling thickness

SPECIFICATIONS:

Plaster Frame: High quality 0.040 steel die cut one piece frame.

Housing: 0.040 aluminum housing with riveted cap adjusts to maximum ceiling thickness of 1-3/4" (45mm). Spring brackets accept torsion wing trim springs; slots on socket plate surface accept standard coil springs.

Air Flow Restriction: Housing has factory installed gaskets to restrict airflow from room into ceiling plenum to <2CFM (cubic feet per minute) in accordance with ASTM-283 Air-Tight requirements.

Socket: Galvanized steel socket plate adjusts inside housing for optimum light performance. Contains a single medium base socket. Protective cap included to protect socket interior during ceiling painting. Socket plate can be removed in the field to convert to a floating socket.

Bar Hangers: Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on frame. Bar hangers are parallel to junction box, but can be repositioned 90º perpendicular to junction box if desired. "L" Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allow for easy installation in a suspended ceiling.

Junction Box: Prewired 25 cubic inch 0.064" thick galvanized steel, with five 1/2", two 3/4" knockouts, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out).

Thermal Protector: Standard UL thermal protector rated for 90ºC is affixed to inner top surface of housing.

Lamp: 75W max. - lamp and wattage varies with trim (ordered separately)

Electrical
Voltage: 120V or 277V, must specify
Operating Temp.: 122˚F (50˚C) max. ambient temp. (with suitable trims)
Dimming: Triac / ELV, as specified on reflector / housing combination.

LABELS AND LISTINGS
cULus Listed for Damp Location w/ Feed Through
cULus Wet Listed (Only with designated trims)
Meets or exceeds ASTM-283 Air-Tight Requirements
Washington State Approved
