NORA Lighting NHIC-17QNBAT

NHIC-17QNBAT Product Description

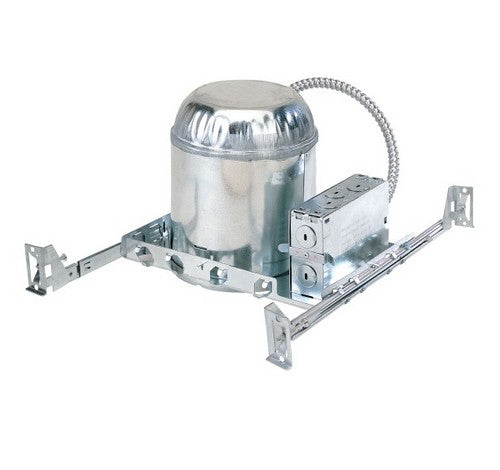

Nora Lighting’s recessed IC housings are high quality, light weight units ideal for use in insulated ceilings. Air-tight construction reduces energy costs by reducing the amount of air escaping through the ceiling. Rated for direct contact with insulation (except spay foam insulation) and combustive materials, Nora IC housings are easy and quick to install and accept a wide variety of high quality, attractive finishing trims.

FEATURES:

Rated for direct contact with insulation
cULus listed for damp location and through branch circuit wiring
Quick connect provided
24-1/2" Bar hangers with captive nails and alignment foot
Accommodates 1-1/4" maximum ceiling thickness

SPECIFICATIONS:

Minimum Clearances: “IC” Housings are direct contact rated; no minimum clearance is required

Ceiling Thickness: Housing adjusts from 5/8″ – 1-3/8″ to accommodate various ceiling thicknesses.

Lamp Position: Lamp is automatically positioned 90 degrees perpendicular to floor when socket is connected to trim and trim is inserted completely into the housing

Bar Hangers: Bar hangers are adjustable from 13-5/8″ to 24-1/2″ and can be repositioned 90 degrees. Bar hangers are slotted for T-bar installation and include captive nails.

Junction Box: Junction box is listed for through branch circuit wiring and contains five 1/2″, two 3/4″ knockouts and four Romex® pryouts with strain relief

Electrical: Quick Connector provided

Maximum Wattage: 100W (actual wattage varies with trim)

Dimensions:
Length: 10-1/8″
Width: 7″
Depth: 7-1/2″
Ceiling Opening: 6-3/8″

LABELS AND LISTINGS
cULus Damp Location w/ Feed Through
cULus Wet Location (Only with designated trims)
Washington State Approved
Meets or exceeds ASTM-283 Air-Tight
