NORA Lighting NH-27Q

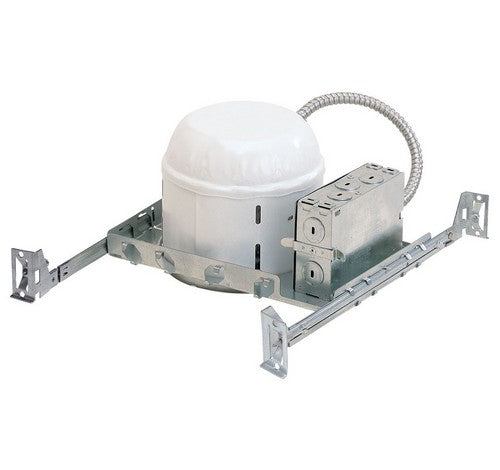

NH-27Q Product Description

Nora Lighting’s universal recessed housing is the base standard for incandescent recessed fixtures. Designed for non-IC applications, it offers the widest range and variety of high quality, attractive finishing trims for lamps ranging from simple A-Type to larger PAR sources.

FEATURES :

Low 5-1/2" profile for existing shallow ceiling plenums
Internal thermal protection
cULus listed for damp location and through branch circuit wiring
Quick connect provided
24-1/2" Bar hangers with captive nails and alignment foot
Accommodates 1-3/4" maximum ceiling thickness

SPECIFICATIONS:

Plaster Frame: High quality 0.032 steel die cut one piece frame. Bar hanger brackets on all four sides provide two possible positions for installations.

Housing: 0.040 housing with riveted cap adjusts to maximum ceiling thickness of 1-3/4" (45mm). Spring brackets accept torsion wing trim springs; slots on socket plate surface accept standard coil springs.

Minimum Clearance: Non-IC housings require minimum clearance of 3" from thermal insulation and 1/2" from adjacent building components.

Socket: Galvanized steel socket plate adjusts inside housing for optimum light performance. Contains a single medium base socket. Protective cap included to protect socket interior during ceiling painting. Socket plate can be removed in the field to convert to a floating socket.

Bar Hangers: Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on frame. Bar hangers are parallel to junction box, but can be repositioned 90º perpendicular to junction box if desired. "L" Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allow for easy installation in a suspended ceiling. Frame may also be supported with aircraft structural cable for drop panel ceilings or any other application requiring direct support from a structural ceiling.

Junction Box: Prewired 25 cubic inch 0.060" thick galvanized steel, with five 1/2", two 3/4" knockouts, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4 in, 4-out). Electrical grounding automatic when feeding with grounded steel EMT pipe or flex. Green wire provided for installations with ground wire fed through PVC pipe conduit.

Quick Connect Feature: Housing contains three UL approved quick connections that allow insertion of 1/4" stripped solid or tinned standard conductors to be inserted into the connector. Connectors are pre attached to fixture power, common, and ground circuits.

Thermal Protector: Standard UL thermal protector rated for 90ºC is affixed to inner top surface of housing.

Lamp: 75W max. - lamp and wattage varies with trim (ordered separately)

LABELS AND LISTINGS
cULus Listed for Damp Location w/ Feed Through
cULus Wet Listed (Only with designated trims)
