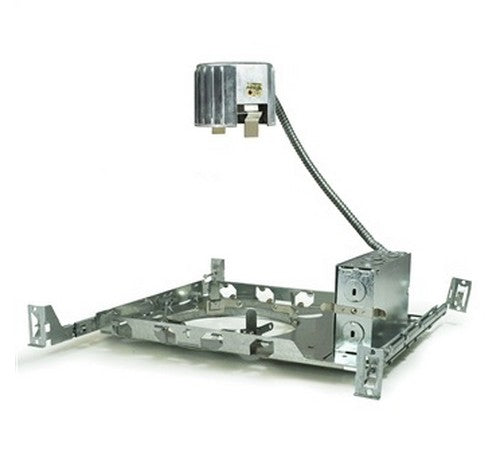

NORA Lighting NH-150

NH-150 Product Description

Six inch commercial frame-in for use with 150W A21 or 150W PAR38 light source. Use in non insulated ceiling, where insulation can be kept 3" from fixture, and 1/2" from adjacent building components.

SPECIFICATIONS:

Plaster Frame: Architectural quality 0.050 galvanized steel ring riveted to elevated 0.064 steel junction box and ballast tray.

Clearance: Non-IC housings require a minimum clearance of 3" around from thermal insulation and 1/2" from combustible material from above the fixture.

Socket Cup: It adjusts vertically for optimum light performance. Die-cast fin construction for heat dissipation.

Bar Hangers
Two 13-3/4" to 24-1/2" adjustable bar hangers with captive nails are included on frame. Bar hangers are parallel to junction box, but can be repositioned 90º perpendicular to junction box if desired. "L" Shaped bar hanger foot to align to bottom of construction joist. A T-Bar notch allow for easy installation in a suspended ceiling.

Junction Box : Pre wired 25 cubic inch 0.064" thick galvanized steel, with five 1/2", two 3/4" knockouts, four Romex® pryouts, and snap on covers. All leads are #18AWG wire, the ground wire is connected to the bottom, and quick connectors are supplied on all leads. Through branch circuit wiring, (4-in, 4-out).

Lamp
150W A21 Max. (ordered separately)
150W PAR38 Max. (ordered separately)

Thermal Protector
External thermal device located on the junction box wrap.

LABELS AND LISTINGS
cULus Listed for Damp Location w/ Feed Through
cULus Wet Listed (Only with designated trims)
