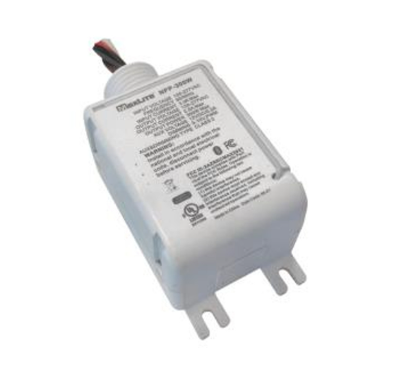

MaxLite NPP-300W 120-277V Network Power Pack 300W Max
2
sold in last
8
hours
NPP-300W
$93.10
customers are viewing this product
PRODUCT DESCRIPTION
MaxLite NPP-300W
NPP-300W Product Description
c-Max Network lighting controls features a patent pending plug-and-play interface that allows for easy field installation of low voltage nodes and sensors to create an affordable luminaire lighting control solution. Use appropriate sensors for DLH to meet energy code compliance
Features:
• Luminaire Level Lighting Control (LLLC) enabled with wireless bluetooth technology
• Easy Commissioning with c-Max App (Available in iOS and Android)
• Local Bluetooth Network with no gateway needed
• Individual Addressability and/or grouping
(lesser of Up to 300W or 8 units whichever comes first)
• Ability to create scenes for more customized dimming scenarios
• High-Trim/Tuning sets the maximum light level based on customer requirements in
each space
• NPP-300W can be used as a standalone, or in conjunction with the NPPSL-PSW PIR
Sensor. If DLH is necessary, use the CNSL-PSW sensor. Sensors are sold separately.
• 5 Year Warranty
Specifications:
OPERATING VOLTAGE 120-277V
MAXIMUM LOAD 2.5A, 300W Max. for LED driver only
POWER CONSUMPTION 5W
LOAD SWITCHING Zero-cross Hybrid Switching
CONTROL TECHNOLOGY BLE Control Node/Optional PIR
CONTROL OUTPUT 0-10V
SINKING CURRENT 25mA
AUX POWER OUTPUT 12Vdc 200mA
RADIO FREQUENCY 2.4GHz ± 75MHz
WIRELESS STANDARD BLE MESH
PROGRAMMING c-Max Mobile App (iOS and Android)
CYBERSECURITY UL1376 Bronze Rating Pending
ENCRYPTION AES 128-bit
MESH RANGE 100ft node-to-node and 50ft node-to-device (Commissioning)
SAFETY cULus Listed E511069 Light-emitting-diode Controllers
FCC FCC ID: 2AZRDCMAX2021
OPERATING TEMPERATURE -40°F to 130°F / -40°C to 55°C
OVERALL DIMENSIONS 81.8mm x 43.4mm x 31.75 mm
COLOR White
WEIGHT 2.75oz
About MaxLite:
MaxLite has been committed to providing energy-efficient lighting products since 1993. One of the first movers into LED technology in the industry, MaxLite offers a complete portfolio of quality certified LED lamps, indoor and outdoor LED luminaires, and a full line of its patented cMax Lighting Controls.
