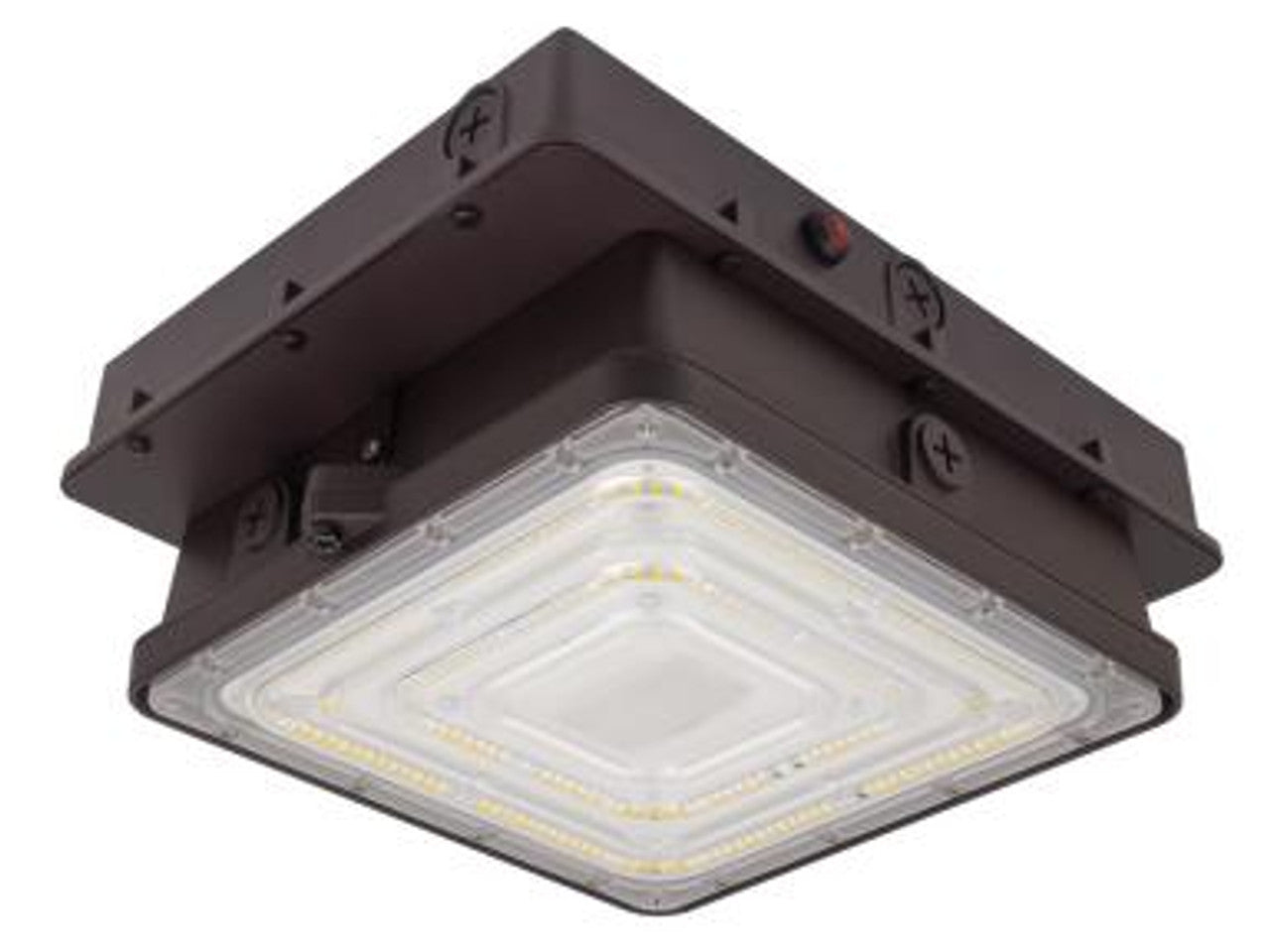

MaxLite CPL40UCSBCREM2

CPL40UCSBCREM2 Product Description

The Enhanced Canopy/Parking Garage fixture is an economical retrofit solution for 70-250W HID garage and canopy luminaires. Offered in five wattages, CCT and wattage selectable, with a single lens that covers up to 4 DLC distribution categories, the CPL can address a variety of canopy/parking garage lighting needs. The series comes standard with an internal c-Max control receptacle which allows for a variety of c-Max controls to be field installed (sold separately). The luminaire also features a single screw design that allows access to the fixture interior within seconds for quick and easy surface conduit connections or c-Max controls installation. In addition, factory-installed battery backup, 480V and White finish options are available.

Specifications:

Brand: Maxlite
Watts (W) 40
Voltage (V) 120-277V
Delivered Lumens (lm) 5418
Efficacy (lm/W) 133.12
Color Rendering Index (CRI) ≥80
Color Temperature (K) 3000/4000/5000
Equivalent Wattage 175W MH
Beam Type STAIRWELL, LOWBAY, PARKING, CANOPY
Power Factor 0.90
Min. Ambient Temp (°F) -40
Max. Ambient Temp (°F) 104
Lumen Maintenance
L70 (Hours) 180000

About MaxLite:

MaxLite has been committed to providing energy-efficient lighting products since 1993. One of the first movers into LED technology in the industry, MaxLite offers a complete portfolio of quality certified LED lamps, indoor and outdoor LED luminaires, and a full line of its patented cMax Lighting Controls.
