MaxLite CNA-RDMSW

CNA-RDMSW Product Description

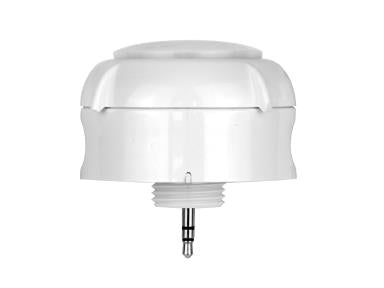

MaxLite 108689 Basic Control Node AJ Round PIR Motion Sensor Daylight Harvesting White

Specifications:

Manufacturer: MaxLite
SKU: CNA-RDMSW
UPC: 767627033780
Operating Voltage: 12-20VDC
Operating Current: max 12mA
Sinking Current: max 25mA
Sensor Technology: PIR*, Photoelectric
Max Mounting Height: 40ft / 12m
Detection Angle: 120°
Control Output: 0-10V
Connector Interface: Audio Jack 3.5mm
IP Rating: IP66
Commissioning Protocol: IR
Certification: cULus Listed E511069, California Title 20 Compliant, FCC Part 15 Subpart B Class A
Operating Temperature: -40°F to 130°F / -40°C to 55°C
Photocell: LOW(1FC) / MEDIUM(20FC) / HIGH(50FC) (PC OFF)
High Trim: 50%, 75%, 100%
Overall Dimensions: 2.48” x 1.42” / 63mm x 36mm
Color: White
Weight: 1.44oz/41g
