MaxLite CN-RDMSW

CN-RDMSW Product Description

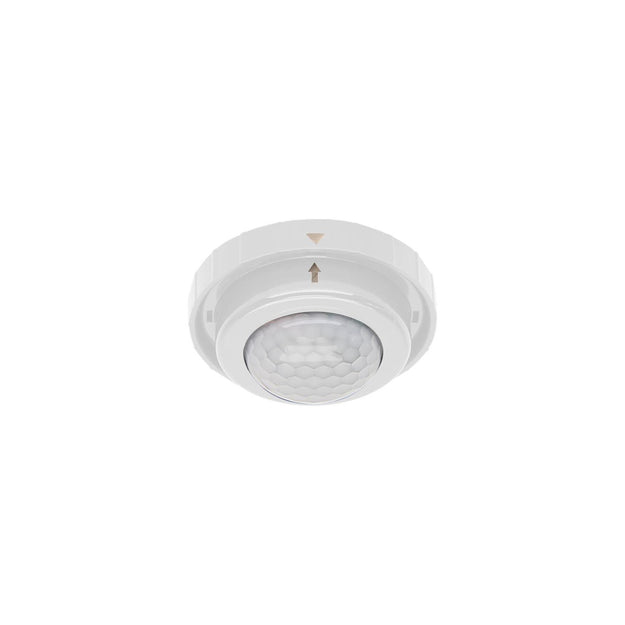

MaxLite 105565 Control Node Round PIR Motion Sensor/Photocell White IP66

Specifications:

Manufacturer: MaxLite
SKU: CN-RDMSW
UPC: 767627007873
Operating Voltage: 12-20VDC
Operating Current: max 12mA
Sinking Current: max 25mA
Sensor Technology: Passive Infrared, Photoelectric
Control Output: 0-10V
DETECTION ANGLE: 120°
Maximum Mounting Height: 40ft / 12m
Connector Interface: USB-C
IP Rating: IP66
Certification: cULus Listed E511069, California Title 20 Compliant,
FCC Part 15 Subpart B Class A
Operating Temperature:  -40°F to 130°F / -40°C to 55°C
Operating Humidity: 0-85% RH Non-Condensing
Photocell: LOW(1FC) / MEDIUM(20FC) / HIGH(50FC)
(PC OFF)
High Trim: 50%, 75%, 100%
Overall Dimensions: 2.48” x 1.42” / 63mm x 36mm
Color: White
Weight: 1.44oz/41g

About MaxLite:

MaxLite has been committed to providing energy-efficient lighting products since 1993. One of the first movers into LED technology in the industry, MaxLite offers a complete portfolio of quality certified LED lamps, indoor and outdoor LED luminaires, and a full line of its patented cMax Lighting Controls.
