Magnitude Lighting VPD96R24DC SoliDrive MAX MLV/ELV/0-10 Dimmable LED Driver without Junction Box, 96W Watt Capacity, 120-277VAC Input/ 24VDC Output
2
sold in last
8
hours
VPD96R24DC
$118.00
$110.92
customers are viewing this product
PRODUCT DESCRIPTION

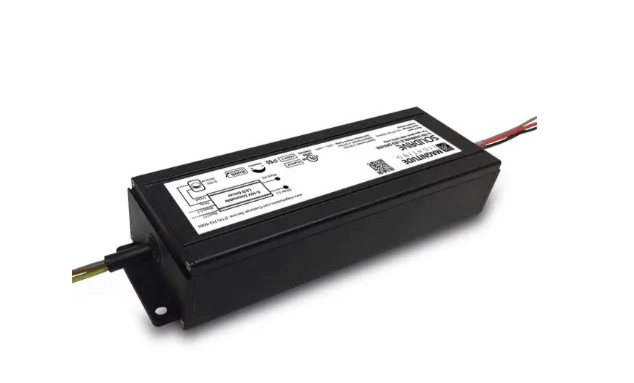

Magnitude Lighting VPD96R24DC
VPD96R24DC Product Description
This item is the Magnitude Lighting power supply part number VPD96R24DC. This driver has a input voltage of 100-277V and includes Auto Reset for over temperature, over load, and short circuit protection. The output current is 4100mA output with a max output power of 96 watts. This driver will operate any LED series of parallel string of LEDs designed for constant voltage input of 24V. This LED Driver is dimmable with 0-10V dimming and delivers smooth flicker-free linear dimming down to 1% with most LED's and a wide variety of compatible dimmers. It is IP66 rated and UL 8750 Approved, and Class 2, Class P rated.Specifications:
Manufacturer: Magnitude LightingSKU: VPD96R24DC
Lighting Technology LED
Driver Constant Voltage
Output Current 4.1A (4100mA)
Input Current 0.98A
Output Wattage 96 Watt
Input Voltage 120-277VAC
Output Voltage 24VDC
Frequency 50/60Hz
Power Factor 0.95 @120VAC; 0.90 @ 277VAC
THD (Total Harmonic Distortion) Power <20%
Efficiency 86%
Dimming Phase or 0-10V Dimming
Max Case Temperature 80°C
Operating Temperature -25°C to 40°C
Rated Life 50,000 Hours
Dimensions 6.80" L x 1.90" W x 1.4" H
Certifications Class 2, RoHS Compliant
Environment Wet Location
About Magnitude Lighting:
Magnitude Lighting’s advanced LED drivers and transformers bring innovation to commercial and residential lighting. Magnitude Lighting is an independent LED power company that focuses on LED drivers and transformers for Commercial, Industrial and Residential applications. With a remarkable longevity in LED Technology since 2008, Magnitude Lighting was one of the first companies in the industry to bring dimmable LED drivers into the lighting market.Have Questions?Ask a BuyRite Electric Expert
