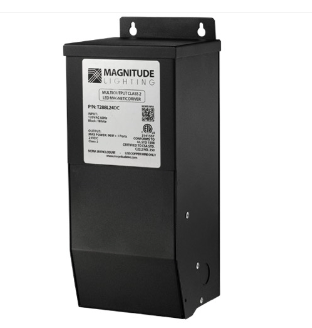

Magnitude Lighting T300L12DC

T300L12DC Product Description

Magnitude 300 Watt (60W x 5) Multi-Channel Magnetic Constant Voltage LED Driver - 120V Input / 12V Output

The Magnitude Lighting T-Series multi-channel Class 2 magnetic dimmable LED drivers are the perfect choice for multi-output needs in tape lighting, tube lighting, linear lighting and multiple other residential and commercial lighting applications. They are encased in a high-quality metal enclosure that includes five 7/8" knockouts for easy installation, each unit is equipped with push-to-reset breakers, one on the input and one on each output, to protect both the driver and the LED load. These magnetic LED drivers are phase dimmable with standard leading edge MLV TRIAC dimmers.

Specifications:

Input voltage: 120VAC - 50/60Hz
Output voltage: 12V DC
Maximum wattage capacity: 300 Watt (60W x 5)
Driver type: Class 2 multi-channel magnetic constant voltage
Installation: integrated junction box with multiple 7/8" knock-outs
Dimming: phase-dimmable with forward edge MLV TRIAC dimmers
Certifications: Class 2, ETL listed, ROHS, cETLus
Warranty: 5 years

About Magnitude Lighting:

Magnitude Lighting’s advanced LED drivers and transformers bring innovation to commercial and residential lighting. Magnitude Lighting is an independent LED power company that focuses on LED drivers and transformers for Commercial, Industrial and Residential applications. With a remarkable longevity in LED Technology since 2008, Magnitude Lighting was one of the first companies in the industry to bring dimmable LED drivers into the lighting market.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
