Magnitude Lighting M150S24OD

M150S24OD Product Description

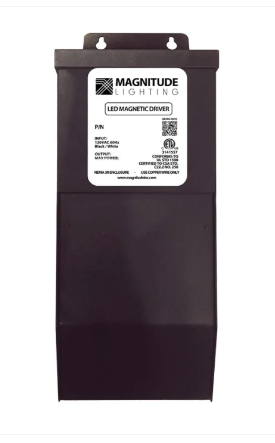

Magnitude AC Series LED Driver w/ Junction Box - 150 Watt Capacity - Dimmable - Manual Reset - 120V Input / 24V AC Output

The Magnitude Lighting AC-Series are the most compact magnetic core dimmable transformers on the market, making them the perfect choice for landscape and other indoor or outdoor lighting applications. Each driver is encased in a high quality metal enclosure that includes multiple 7/8" knock-outs for easy installation, and is equipped with circuit breakers to protect both the driver and the load. These magnetic transformers are phase dimmable with standard leading edge MLV TRIAC dimmers.

Specifications:

Input voltage: 120VAC - 50/60Hz
Output voltage: 24V AC
Maximum wattage capacity: 150 watts
Driver type: magnetic constant voltage w/ manual reset breaker
Installation: integrated junction box with multiple 7/8" knock-outs
Dimming: phase-dimmable with forward edge MLV TRIAC dimmers
Operating temperature: -22º to 113º F
Certifications: ETL listed, UL8750, ROHS, cETLus
Warranty: 5 years

About Magnitude Lighting:

Magnitude Lighting’s advanced LED drivers and transformers bring innovation to commercial and residential lighting. Magnitude Lighting is an independent LED power company that focuses on LED drivers and transformers for Commercial, Industrial and Residential applications. With a remarkable longevity in LED Technology since 2008, Magnitude Lighting was one of the first companies in the industry to bring dimmable LED drivers into the lighting market.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
