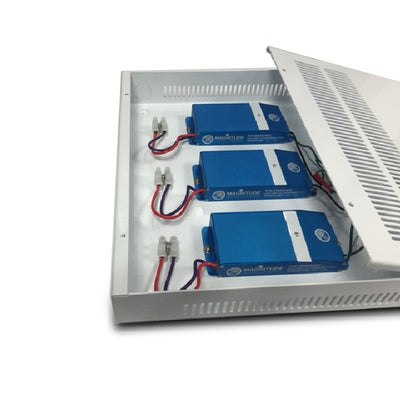

Magnitude Lighting EZJ120L12DC E-Series Class 2 Constant Voltage Dimmable LED Driver, 120W (60W x 2), 120VAC Input/24V DC Output

2 sold in last 8 hours

EZJ120L12DC

$219.00 $205.86
$205.86
customers are viewing this product

Magnitude Lighting EZJ120L12DC

EZJ120L12DC Product Description

Electronic Constant Voltage Phase-Cut Dimmable LED Driver - 60W x 2 Max Output Power - Input 120VAC - Output 12VDC - Nema 3R - Indoor & Outdoor - High Power Class 2

Specifications:

Manufacturer: Magnitude Lighting
MPN: EZJ120L12DC
Family: LED Voltage Drivers-UL Listed
Ballast Type: Hard Wired LED Driver
Dimmable: Yes
Length (in): 11”
Width (in): 12”
Height (in): 2.13”
Voltage (V): 120VAC
Input Current: 1A per channel
Bulb Type: LED
Mounting: Wall mount
Output Voltage : 12V
Output Current: 5A per channel
Output Power: 60W Per Port x 2
Power Factor: 0.95
Type: Constant Voltage
Start Temp. (Min): -20°C
Start Temp. (Max): 50°C
THD: < 20%
Weight (lb.): 7.27lbs
Lead Lengths: Input Wires Terminal Block , Output Wires Terminal Block
UL Listed: cULus, class 2

About Magnitude Lighting:

Magnitude Lighting’s advanced LED drivers and transformers bring innovation to commercial and residential lighting. Magnitude Lighting is an independent LED power company that focuses on LED drivers and transformers for Commercial, Industrial and Residential applications. With a remarkable longevity in LED Technology since 2008, Magnitude Lighting was one of the first companies in the industry to bring dimmable LED drivers into the lighting market.
