Magnitude Lighting EZJ-S-N-060-24DC

EZJ-S-N-060-24DC Product Description

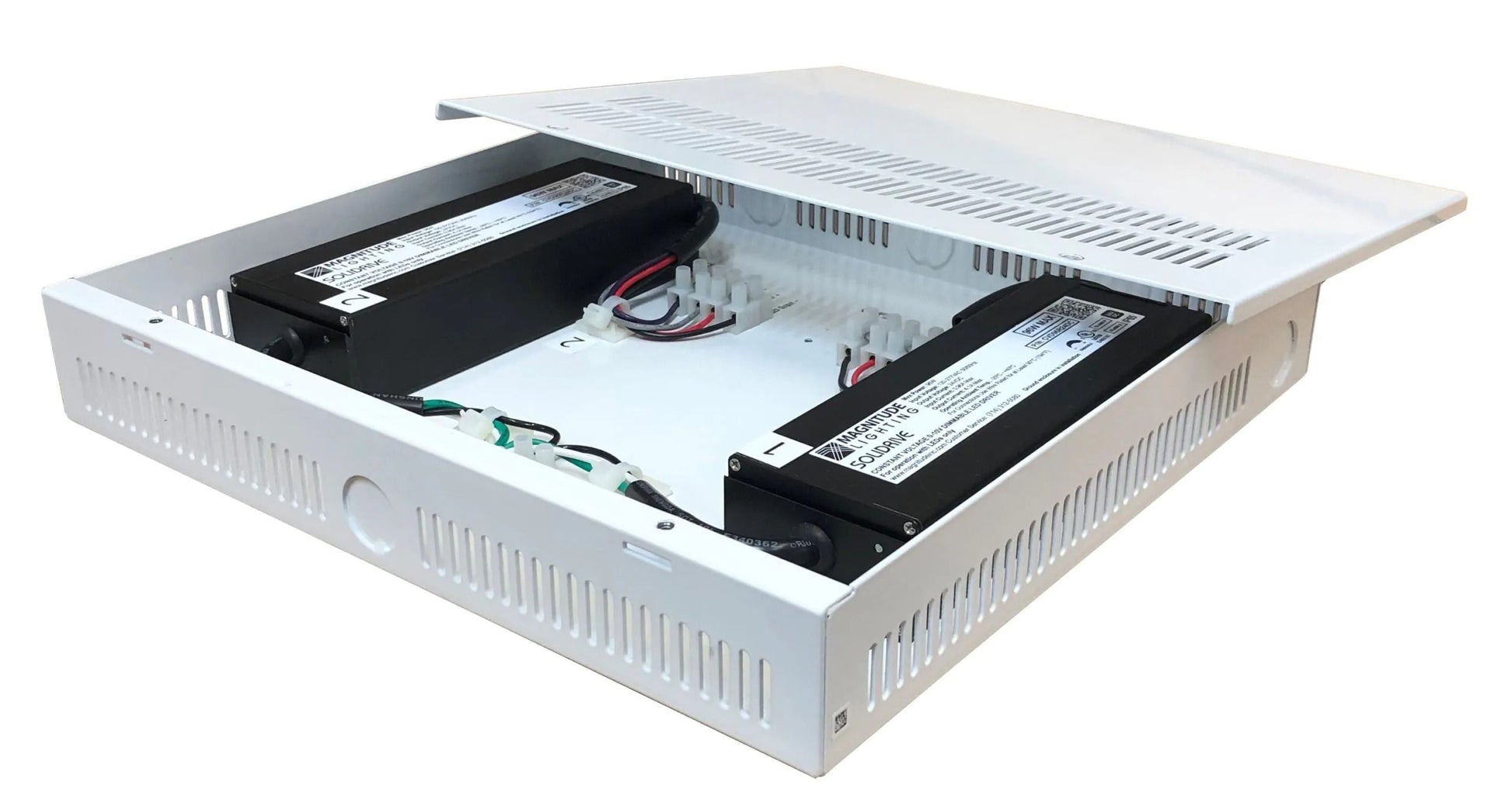

The EZJBOX | SOLIDRIVE uses Magnitude's SOLIDRIVE electronic Class 2, 0-10V or phase-cut dimmable LED drivers with 2-channel configuration. The drivers feature hiccup mode, over current and short circuit protection, as well as an efficiency over 84% resulting in low operating case temperature. The SOLIDRIVE Series is available in a non-dimmable version.

Specifications:

Manufacturer: Magnitude Lighting
SKU:  EZJ-S-N-060-24DC
Lighting Technology LED
Input Voltage Range: 120VAC/277VAC ± 10%
Input Frequency: 50 / 60Hz
Input Current: 0.96A Max
Efficiency: >84%
Power Factor: 0.95
Max Load: 30W
Output Voltage @ Max Load: 24.0 VDC
Output Current @ Max Load: 1.2A
Environmental Protection Rating: -22°F - 122°F
Circuit Breaker: Hiccup Mode, Over Current. Short Circuit
Primary Leads: Terminal Block
Secondary Leads: Terminal Block
Length: 11"
Width: 12"
Height: 2.13"
Weight: 7.27 lbs
Housing Material: Galvanized Steel
Housing Color: White

About Magnitude Lighting:

Magnitude Lighting’s advanced LED drivers and transformers bring innovation to commercial and residential lighting. Magnitude Lighting is an independent LED power company that focuses on LED drivers and transformers for Commercial, Industrial and Residential applications. With a remarkable longevity in LED Technology since 2008, Magnitude Lighting was one of the first companies in the industry to bring dimmable LED drivers into the lighting market.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
