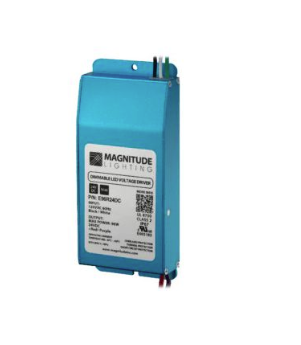

Magnitude Lighting E20R12DC

E20R12DC Product Description

The E-Series Recognized is an electronic Class 2 dimmable LED driver with an extremely compact low-profile aluminum case, making it the perfect choice for under-cabinet lighting, kick/cove lighting, mirror lighting, and multiple other residential and commercial lighting applications. The driver features auto reset, over current and short circuit protection, as well as an efficiency of over 90% resulting in low operating case temperature. The product line is phase-dimmable down to 1% with leading edge TRIAC dimmers.

Features

Installation: Wire leads
Driver Type: Class 2 Single Channel
Dimming: Phase-dimmable down to 1% with leading edge TRIAC Dimmer
Input Voltage: 120VAC, 50/60Hz
Output Voltage: 12VDC or 24VDC
Environmental: Wet location
IP Rating: IP67
Listing: UL Recognized
Certifications: UL8750 | CSA C22.2 No. 250 13-14
Listing Certification: UL 879 | CSA C22.2 No. 207-M89
Warranty: 5-Year

Specifications

Input

Input Voltage Range: 120VAC ± 10%
Input Frequency: 50 / 60Hz
Input Current: 0.20A@120VAC (12VDC), 0.20A@120VAC (24VDC)
Efficiency: > 90% (12VDC), > 90% (24VDC)
Power Factor: 0.95
Output

Max Load: 20W
Output Voltage @ Max Load: 12.0 VDC, 24.0 VDC
Output Current @ Max Load: 1.7A (12VDC), 0.90A (24VDC)
Environmental

Max Ambient Temperature: -22°F - 122°F
Dimming

Minimum Dimming Level: 1%
Protection

Circuit Breaker: Short Circuit & Over-Voltage Auto-Reset
Mechanical Housing

Primary Leads: 18AWG
Secondary Leads: 14AWG
Length: 4.92"
Width: 2.20"
Height: 0.79"
Weight: 9 oz
Housing Material: Anodized Aluminum
Housing Color: Blue
Junction Box: No
Mounting: One hole flange mount and one half-hole flange mount.
