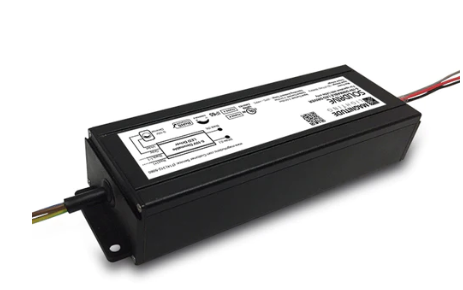

Magnitude Lighting CVN96R48DC

CVN96R48DC Product Description

The SoliDrive Series of Constant Voltage Class 2 LED Drivers from Magnitude Lighting offers both UL Listed and UL Recognized style enclosures. The UL Listed type enclosure has a built-in junction box on both the input and output. These drivers are IP65 rated and are suitable for both indoor and outdoor installations. With universal input voltage ranging from 120 to 277VAC, the SoliDrive series of drivers are designed for commercial, industrial and residential applications. As always, a 5-year warranty is a standard on all Magnitude Lighting products.

Specifications:

Manufacturer: Magnitude Lighting
SKU: CVN96R48DC
Family Constant Voltage LED Driver
Length (in) 6.8''
Width (in) 2.36''
Height (in) 1.4''
Voltage (V) 120-277VAC
Input Current 0.96A Max
Bulb Type LED
IP Rating IP65
Output Voltage 48V
Output Current 2000mA
Output Power 96W
Power Factor > 0.95
Type Constant Voltage
Start Temp. (Min) -25ºc
Start Temp. (Max) +40ºc
THD: < 20%
Mounting Length 7.5''
Weight (lb.) 1.725
