Magnitude Lighting CVN30R24DC

CVN30R24DC Product Description

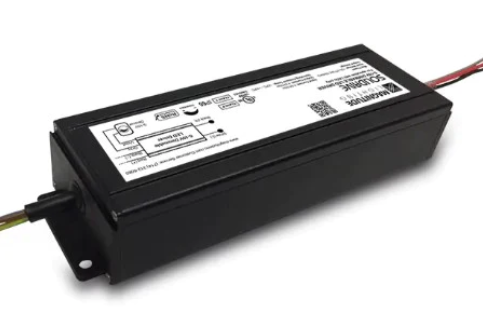

The SoliDrive Series of Constant Voltage Class 2 LED Drivers from Magnitude Lighting offers both UL Listed and UL Recognized style enclosures. The UL Listed type enclosure has a built-in junction box on both the input and output. These drivers are IP65 rated and are suitable for both indoor and outdoor installations. With universal input voltage ranging from 120 to 277VAC, the SoliDrive series of drivers are designed for commercial, industrial and residential applications. As always, a 5-year warranty is a standard on all Magnitude Lighting products.

Specifications:

Manufacturer: Magnitude Lighting
SKU: CVN30R24DC
Brand Magnitude
Family Constant Voltage LED Driver
Length (in) 6.8''
Width (in) 2.36''
Height (in) 1.4''
Voltage (V) 120-277VAC
Input Current 0.96A Max
Bulb Type LED
IP Rating IP65
Output Voltage 24V
Output Current 2600mA
Output Power 30W Max
Power Factor > 0.95
Type Constant Voltage
Start Temp. (Min) -25ºc
Start Temp. (Max) +40ºc
THD: < 20%
Mounting Length 7.5''
Weight (lb.) 1.725
UL Listed UL 8750, class 2, Class P
Warranty 5-year warranty

About Magnitude Lighting:

Magnitude Lighting’s advanced LED drivers and transformers bring innovation to commercial and residential lighting. Magnitude Lighting is an independent LED power company that focuses on LED drivers and transformers for Commercial, Industrial and Residential applications. With a remarkable longevity in LED Technology since 2008, Magnitude Lighting was one of the first companies in the industry to bring dimmable LED drivers into the lighting market.
