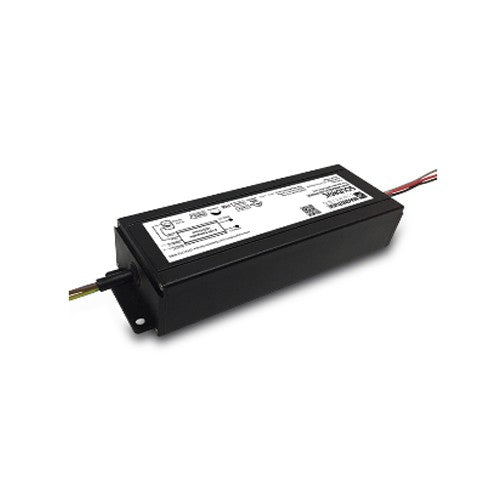

Magnitude Lighting CVD60R24DC Solid Drive Single Channel Dimmable LED Driver, 60W Capacity, 120-277VAC Input/24VDC Output

Magnitude Lighting CVD60R24DC

CVD60R24DC Product Description

Electronic Constant Voltage 0-10V Dimmable LED Driver - 60W Max Output Power - Input 120-277VAC - Output 24VDC - 2600mA Max Output Current - IP65 - For Both Indoor and Outdoor Use - Without a Jbox.

Specifications:

Manufacturer: Magnitude Lighting
SKU: CVD60R24DC
Family: Constant Voltage LED Driver
Dimmable: Yes
Length (in): 6.8''
Width (in): 2.36''
Height (in): 1.4''
Voltage (V): 120-277VAC
Input Current: 0.96A Max
Bulb Type: LED
IP Rating: IP65
Output Voltage : 24V
Output Current : 2600mA
Output Power: 60W Max
Power Factor: > 0.95
Type: Constant Voltage
Start Temp. (Min): -25ºc
Start Temp. (Max): +40ºc
THD: < 20%
Mounting Length: 7.5''
Weight (lb.): 1.725
UL Listed: UL 8750, class 2, Class P

About Magnitude Lighting:

Magnitude Lighting’s advanced LED drivers and transformers bring innovation to commercial and residential lighting. Magnitude Lighting is an independent LED power company that focuses on LED drivers and transformers for Commercial, Industrial and Residential applications. With a remarkable longevity in LED Technology since 2008, Magnitude Lighting was one of the first companies in the industry to bring dimmable LED drivers into the lighting market.
