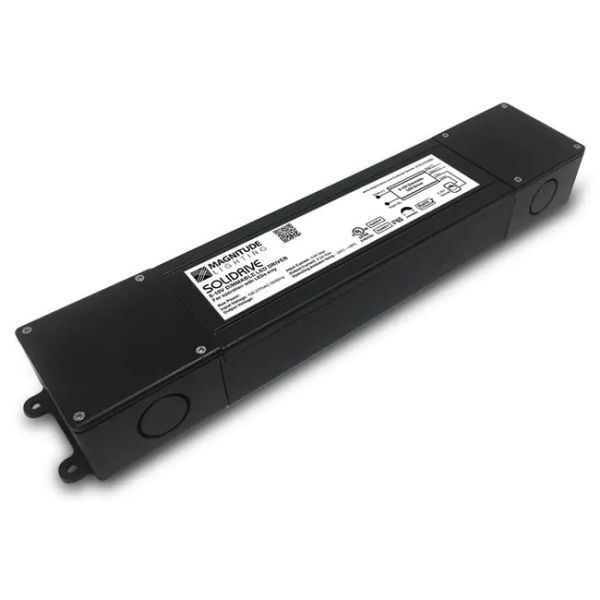

Magnitude Lighting CVD30L48DC

CVD30L48DC Product Description

The Solidrive is an electronic Class 2, 0-10V dimmable LED driver with an available integrated junction box, making it the perfect choice for tape lighting, tube lighting, linear lighting and multiple other commercial lighting applications. The UL enclosure is IP66 and UL2043 plenum rated and are suitable for both indoor and outdoor installations; each includes a separate input and output wiring compartment with three 7/8" knockouts for easy installation. The driver features hiccuup mode, over current and short circuit protection - as well as an efficiency over 84%, resulting in low operating case temperature. The SOLIDRIVE is dimmable down to 1% with a 0-10V dimmer and is also available in a non-dimmable version.

Specifications:

Manufacturer: Magnitude Lighting
MPN: CVD30L48DC
Driver Type: Class 2 Single Channel
Dimming: 0-10V dimmable down to 1%; non-dimmable available
Input Voltage: Universal 120VAC to 277VAC, 50/60Hz
Output Voltage: 12, 24, 36, or 48VDC
Environmental: Dry & damp
IP Rating: IP66
Listing: Available in UL Listed, Class P, Type HL
Certifications: UL8750, UL2043 Plenum Rated

About Magnitude Lighting:

Magnitude Lighting’s advanced LED drivers and transformers bring innovation to commercial and residential lighting. Magnitude Lighting is an independent LED power company that focuses on LED drivers and transformers for Commercial, Industrial and Residential applications. With a remarkable longevity in LED Technology since 2008, Magnitude Lighting was one of the first companies in the industry to bring dimmable LED drivers into the lighting market.

Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
