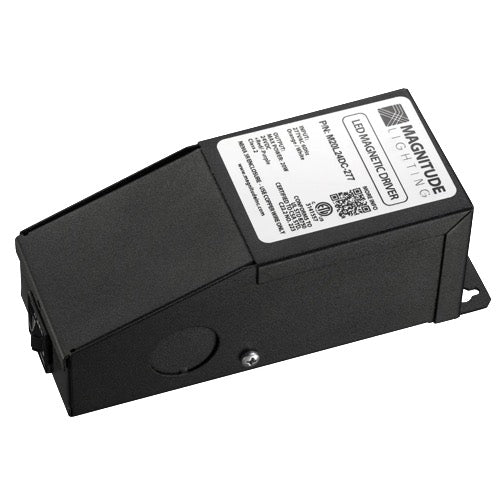

Magnitude Lighting M40L12DC-AR

M40L12DC-AR Product Description

Magnitude's M40L12DC-AR is the most compact LED driver on the market with a magnetic transformer core. It is equipped with auto-reset breakers, one on the input and one on the output, which protect both the load and driver. The driver is encased in a coated metal box that includes 2 knock-outs, one on each side, to enable easy installation that complies with electrical code requirements.

Specifications:

Manufacturer: Magnitude Lighting
MPN: M40L12DC-AR
UPC: 810020791952
Lighting Technology: LED
Driver: Constant Voltage
Output Current : 1.65A (1650mA)
Input Current: 0.195A
Output Wattage: 20 Watt
Input Voltage: 120VAC
Output Voltage : 12VDC
Frequency: 50/60Hz
Efficiency: 89.8%
Dimming: Phase Dimming
Operating Temperature: -30°C to 45°C
Dimension: 5.60" L x 2.10" W x 2.10" H
Certifications: ETL Listed
Environment: Dry and Damp Location
