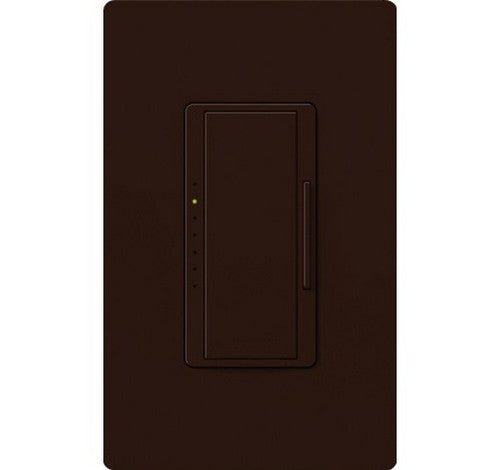

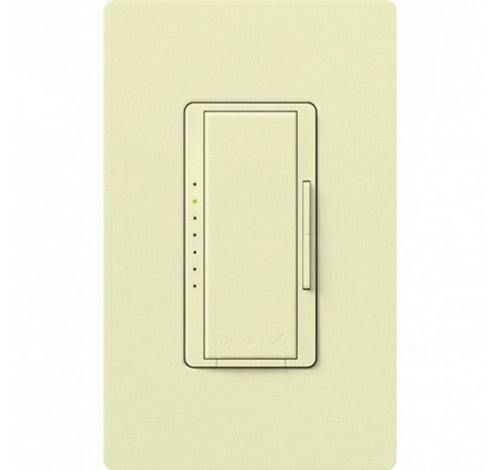

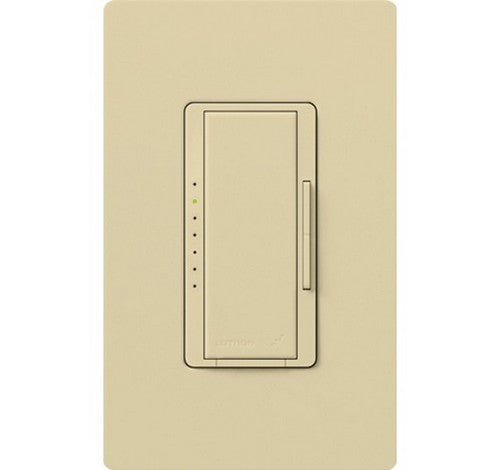

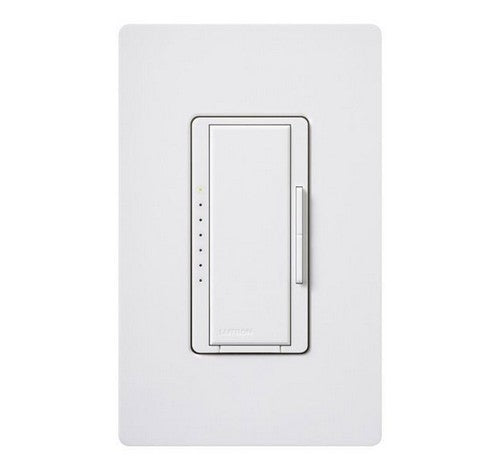

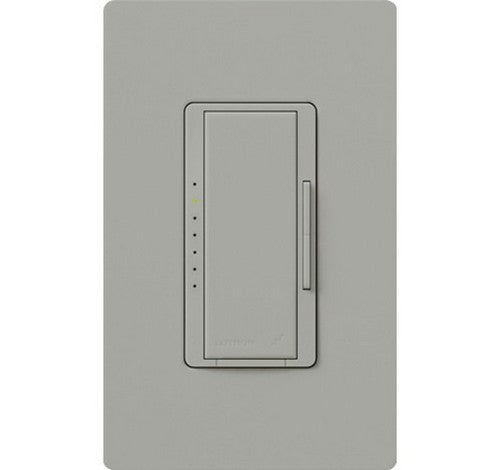

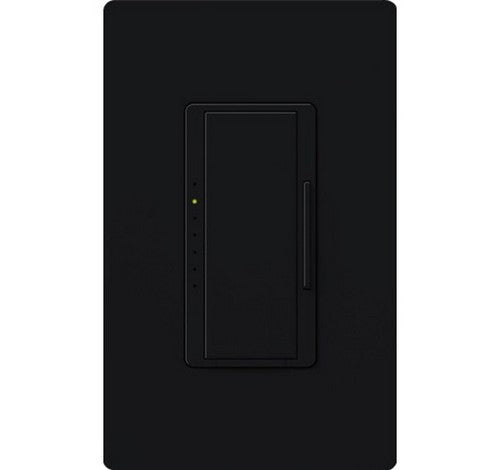

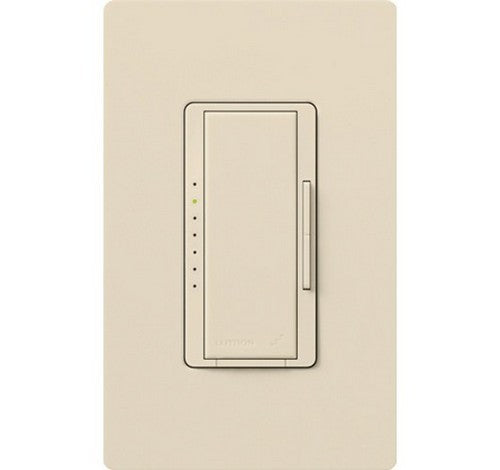

Lutron MRF2S-6ELV120-WH 600W Vive Maestro Wireless Dimmers
Please call us at 877-487-4444 to purchase this product or email us at email@example.com
The Maestro Wireless solution incorporates Maestro Wireless load controls, wireless sensors, and wireless remote controls, which provide a system that delivers energy savings, convenience, and ease of installation.
Maestro Wireless dimmers and switches use Lutron patented Clear Connect RF Technology, which enables wireless communication with Radio Power Saver sensors and Pico remote controls for light control and general switched loads.
These products are also compatible with the Vive hub which enables a simple setup process using a standard web browser on any Wi-Fi enabled phone, tablet or computer. It also enables control and monitoring of all Vive devices. The Vive hub can be added at any time. System reprogramming will be required. For a complete list of features supported with the Vive hub, see specification submittal 369902.
The Maestro Wireless solution provides dimming/ switching of multiple load types, occupancy/vacancy sensing, daylight harvesting, and high-end trim.
Lutron patented Clear Connect RF Technology works through walls and floors.
Incorporates advanced features such as fade ON/fade OFF, high-end trim, and rapid full-ON.
Controls include Front Accessible Service Switch (FASS) for safe lamp replacement.
Two-wire dimmers and switches available for retrofit applications.
Power failure memory: If power is interrupted, the control will return to its previously set level prior to interruption.
CUL® Listed (MRF2S-6CL only).
CSA Certified (except for MRF2S-6CL).
FCC Approved. Complies with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. Industry Canada Certified.
The following model numbers have been tested and found compliant with UL 2043 for use in air handling
120 V~ 50/60 Hz (all models)
277 V~ 50/60 Hz (MRF2S-8S-DV)
Ambient operating temperature: 32 °F to 104 °F (0 °C to 40 °C)
0% to 90% humidity, non-condensing.
Indoor use only.
All drivers and ballasts used with Vive wireless controls must comply with the limits for a Class A device pursuant to Part 15 of the FCC Rules.
