Lutron LOS-CIR-1500-WH

LOS-CIR-1500-WH Product Description

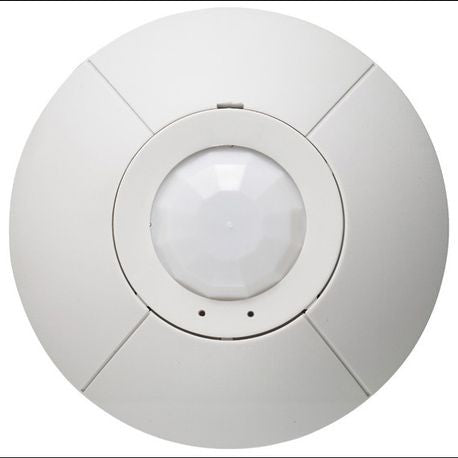

LOS Series CLNG-mount Occupancy Sensor, Passive infrared self-adaptive, White finish only, 20-24VDC in white, 1500 FT coverage, 360 degree field of view. The LOS-CIR Series passive infrared ceiling-mount sensors can integrate into Lutron systems or function as stand-alone controls using a Lutron power pack. The sensor uses a small semiconductor heat detector that resides behind a multi-zone optical lens. The detector is sensitive to the heat emitted by the human body. In order to trigger the sensor, the source of heat must move from one range of detection to another. Non-moving hot objects will not cause the lights to turn on.

Features:

Intelligent, continually adapting Passive Infrared (PIR) sensor
Passive Infrared (PIR) sensing
Reliable motion detection with high error immunity
Snap-locks to ceiling-mounted cover plate
Non-Volatile Memory: settings saved in protected memory are not lost during power outages
450ft to 1500ft (42m to 140m) coverage when mounted on an 8 ft to 12 ft (2.4 m to 3.7 m) ceiling
Affords choice of turning lights off or dimming to a preset level in the unoccupied state when integrated with a Lutron system.

Specifications:

Manufacturer: Lutron
Occupancy Sensor Type: Passive Infrared (PIR)
Manufacturer Part Number: LOS-CIR-1500-WH
UPC: 027557212403
Input Voltage: 24V
Color: White
Detection Zone: 360 Degrees
Adjustments: Time

About Lutron:

Lutron designs and manufactures automated light and shade controls for homes and commercial applications. Our story began in the late 1950s in Joel Spira’s makeshift lab in New York City. A young physicist fascinated by the aesthetic manipulation of light, Spira commandeered the spare bedroom in the apartment he shared with his wife, Ruth, and set out to invent a solid-state device that would enable people to vary the intensity of the lights in their homes. The result? The world’s first solid state dimmer-and the birth of the lighting control industry. Since then, Lutron has been busy innovating. We hold over 2,700 worldwide patents and were the first company to create a system of dimmer and motorized window shades for controlling both electric light and daylight.
