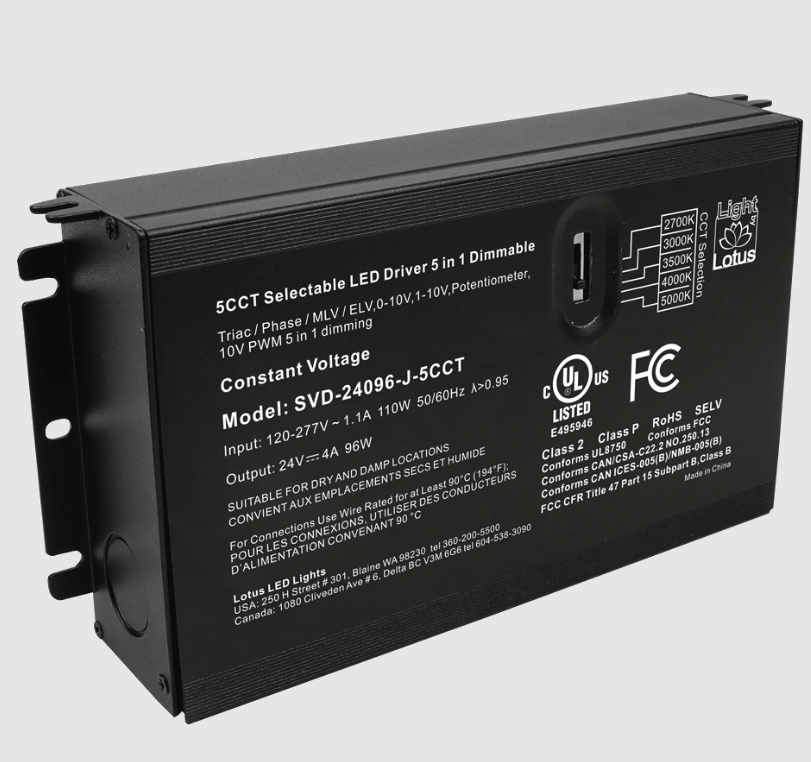

Lotus LED Lights SVD-24096-J-5CCT 5CCT Selectable 24V 96W 5-in-1 Dimmable cULus Driver with Built-in Wiring Chambers 120-277V Wet Class 2

Lotus LED Lights SVD-24096-J-5CCT

SVD-24096-J-5CCT Product Description

The SVD-24096-J-5CCT is a 24V DC, 96W constant voltage LED driver designed specifically for 5CCT tunable white LED tape applications. It features an integrated 5CCT selector with color temperature options of 2700K, 3000K, 3500K, 4000K, and 5000K, allowing flexible lighting control. The driver supports 5-in-1 dimming, including TRIAC, ELV, MLV, 0-10V, 1-10V, potentiometer, and 10V PWM dimming for smooth, flicker-free performance. Built with Active Power Factor Correction (PFC) and PWM technology, it ensures excellent dimmer compatibility and high energy efficiency. The unit includes built-in wiring compartments with multiple knockouts for easy installation and provides comprehensive protection against short circuit, over-voltage, over-temperature, and overload. Suitable for dry, damp, and wet locations, it is designed exclusively for use with Lotus 5CCT tunable white LED tape.

Specifications:

SKU: SVD-24096-J-5CCT
Brand: Lotus LED Lights
Applications: Tunable White LED Tape
CCT Options: 2700K / 3000K / 3500K / 4000K / 5000K
Power: 96W
Input Voltage: 120–277V AC
Output Voltage: 24V DC ±4%
Output Current: 4A
Driver Type: Constant Voltage Electronic LED Driver
Dimming: TRIAC, 0-10V, 1-10V, Potentiometer, 10V PWM
Load Range: 9W–96W
THD: <10% at full load
Power Factor: >0.95 at full load
Efficiency: 89% @120V / 91% @277V (full load)
Standby Power: <0.5W
Inrush Current: 120.1A @120V (364µs), 70.6A @277V (510µs)
Leakage Current: <0.5mA
PWM Frequency: 16kHz
Protection: Short Circuit, Over-Voltage, Over-Temperature, Overload
Approved Location: Dry Locations IP20
Wiring Volume: 8.75 cu in per chamber
Operating Temperature: -40°F to +140°F (-40°C to +60°C)
Net Weight: 2.2 lbs (1kg)
Warranty: 5 Years
Safety Standards: cULus Listed UL8750, CAN/CSA-C22.2 No. 250.13
Certifications: Class 2, Class P, FCC Part 15 Subpart B
Compatible LED Tape: Lotus LBL-COB-TW5CCT-IP20
Installation Features: Built-in wiring compartments with multiple knockouts for easy wiring
