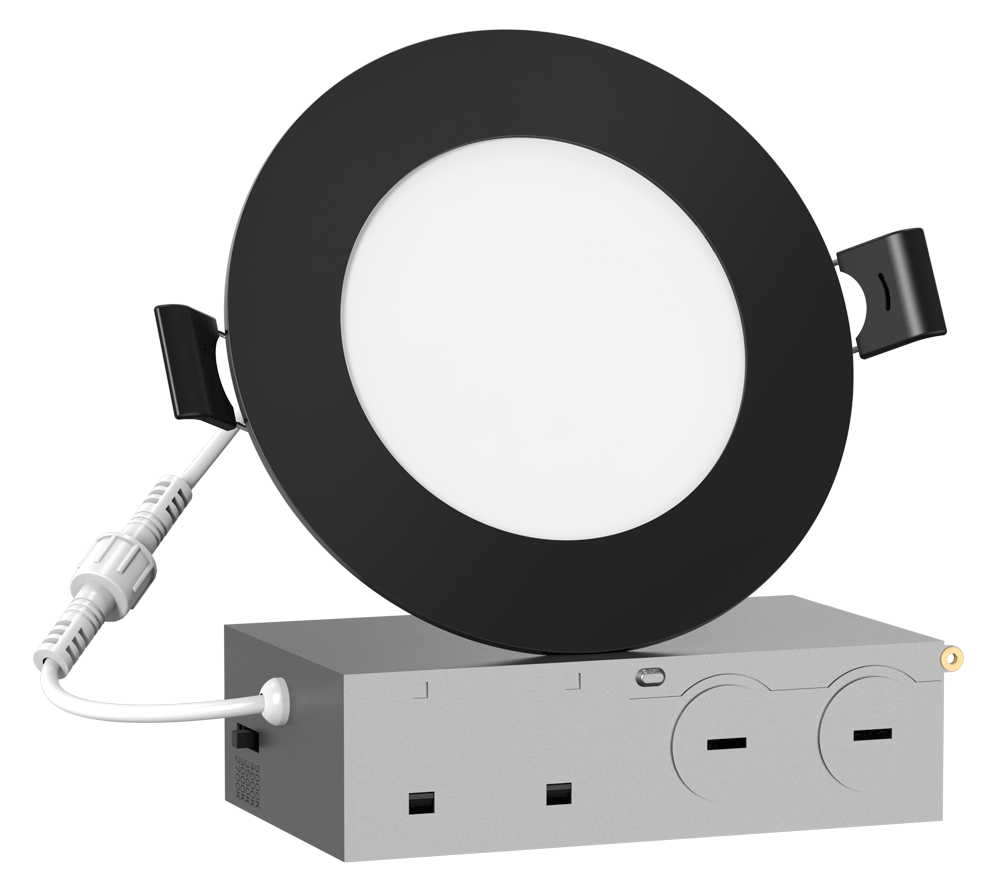

Lotus LED Lights SC-DL09-D04H-A1-61RE-BK

SC-DL09-D04H-A1-61RE-BK Product Description

Ultra-slim 4" round LED panel ideal for renovations and new construction, offering 5 adjustable color temperatures (2700K-5000K) and 100W halogen-equivalent brightness (up to 1030 lumens) with 90+ CRI. Features TRIAC dimming (10%-100%), airtight design for wet/insulated ceilings, and Black trim. cETLus, Energy Star, and JA8 compliant, operating in -4°F to 104°F with a 50,000-hour lifespan and 3-year warranty.

Specifications:

Brand: Lotus LED Lights
Part Number: SC-DL09-D04H-A1-61RE-BK
UPC: 769152013862
Applications: Renovations & New Construction
Power: 9W
Color Temperature (K): 2700K, 3000K, 3500K, 4000K, 5000K
Light Output (lm): 960lm, 980lm, 1015lm, 1030lm, 1020lm
Halogen Equivalent: 100W
Beam Angle: 110°
CRI: 90+
Driver Input: 100-130V AC
Dimming: TRIAC Dimmers (10% - 100%)
Junction Box Volume: 8.4 cubic inches / Max 5 No.12 AWG or 7 No.14 AWG
Approved Location: Insulated Ceiling & Wet Locations
Air Tight: Yes
Ambient Temperature: -4°F (-20°C) to +104°F (+40°C)
Projected Life: 70% Light Output at 50,000 Hours
Certification: cETLus, FCC, Energy Star, JA8
Warranty: 3 Years
Finish: Trim Black

Features:

Lotolite 4″ Slim Panel – delivering an impressive high-lumen output of 1000 lm from 9W
Up to 120 lm/W – Best in Class Efficiency
5 CCT Field Selectable 2700-3000-3500-4000-5000K
Type IC, Air-Tight & Wet Location Rated – No Housing Required
CRI 90+ for true color rendering
White & Black trims in stock
Triac Dimmable with most CL dimmers 120V input
cETLus, FCC, Energy Star, JA8 certified
