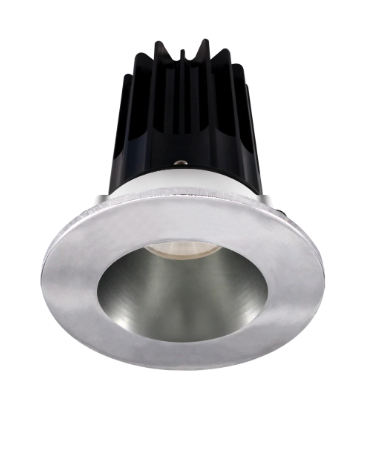

2" Round Recessed Designer 15W

Recessed LED fixture with interchangeable round, square and specialty trims. Driver inside connections box included – one driver for every fixture required.

MOUNTING:

Cut hole in ceiling and snap fixture in opening with attached spring clips. Ceiling Clearance Required: 4-1/2"

Default driver 120V input Triac dimmable

Optional driver for single CCTs only – 120-277V input 0-10V dimmable

Energy Used: 15W

Halogen equivalent: 100W

Beam Angle: 38°(default) or 24°

Light color options: 5CCT 27-30-35-40-50K

Light output: 5CCT 820 lm to 1000 lm

Ambient Operating Temperature: -4°F (-20°C) to +104°F (+40°C)

Approved Locations: Insulated Ceilings & Damp Locations

Certifications: cETLus, Energy Star, T24

Warranty: 5 Year

DIMENSIONS:

ID 1-7/8", OD 3-1/8";Thickness of Trim 1/8"

Thickness of Reflectors 1"

Cut out: 2-3/4"

Junction Box Dimensions (with driver inside): 3-3/4” x 2-1/4” x 1-1/2”

Suitable for Insulated Ceiling & Damp Locations.

Average Hours:50000

Beam Angle: 24 degree

Brand: Lotus LED Lights

Bulb Color: CCT Switchable

Color Temperature: 2700/3000/3500/4000/5000 Kelvin

Compliance: T24

CRI: 90+

Damp Location: Yes

Diameter: 3.13 Inch

Dimmable: Yes

Downlight Shape: Round

Downlight Size: 2 Inch

Downlight Type: Regressed

Energy Star: Yes

ETL Listed: Yes

Finish: Chrome

Fixture Type: Downlight

Halogen Equivalent: 100 Watt

Height: 4.38 Inch

IC Rated: Yes

Installation Type: Clip on/No Can

Item number: LED-2-S15W-5CCT-2RRCH-2RTCH-24D

Lamp Type: Integrated LED

Lumens: 820-1000

Mount Type: Recessed

Reflector Finish: Chrome

Safety Rating: Air Tight

Shape: Round

Trim Finish: Chrome

Voltage: 120 Volt

Warranty: 5 Year

Wattage: 15 Watt

Weight: 1 lb
