Lotus LED Lights L3G-SSW-BK-LB24-5C95
L3G-SSW-BK-LB24-5C95 Product Description

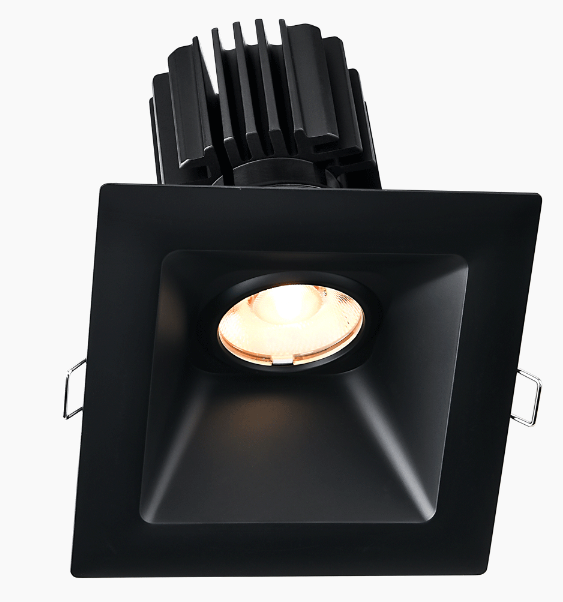

L3G-SSW-BK-LB24-5C95 is a 4" square gimbal LED downlight designed for sloped ceiling installations, delivering focused illumination with enhanced visual contrast. Featuring a black trim (BK) with a lens black optic (LB), this fixture offers a 24° narrow beam, ideal for accent lighting applications where controlled light and minimized glare are desired.
Powered by Lotus LED’s high-performance COB technology, the fixture produces up to 1600 lumens at a 5000K color temperature with 95 CRI, providing bright, crisp illumination with excellent color accuracy. The adjustable gimbal allows up to 30° tilt and 360° rotation, enabling precise aiming on ceilings sloped from 5° to 55°.
Specifications:
SKU: L3G-SSW-BK-LB24-5C95
Brand: Lotus LED Lights
Power: 11W / 15W user selectable with Lotus Tangra drivers
Color Temperature: 5CCT: 2,700 / 3,000 / 3,500 / 4,000 / 5,000K
Lumens: Up to 1600 lm at 3000K CRI95
Light beam: 24° with 20° tilt and 360° rotation
Fixture Input: 20-40V DC Max 350 mA Constant Current
CRI: 95
Trim Color: Black
Optics: Black Lens
Driver Options: 120V AC Triac Dimmable 11W / 15W Selectable – 120V-347V AC 0-10V Dimmable 11W / 15W Selectable
J-Box Wire Volume: Max 5 No 12 AWG or 8 No 14 AWG
Cable Rating: FT6 / CMP Open Plenum
Operating Temp: -40°F (-40°C) to +113°F (+45°C)
Projected Life: 70% Light Output at 50,000 Hours
ID: 3 1/2 ”
OD: 4 3/4″
Height: 4 3/8″
Cut out: 3″
Certification: c ETL us, FCC, Type IC, Air Tight, Open Plenum, Wet Location IP54
Warranty: Lotus warranties for as long as we manufacture this line + 5 years
About Lotus LED Lights:
Lotus LED Lights is a family-owned and operated business specializing in LED lighting. We design, produce, and distribute to electrical wholesalers slim LED recessed lighting fixtures of high quality and with unique features.
We believe in what we do and support our customers by not discontinuing products as they evolve. The company’s success is rooted in providing a wide variety of high-quality products, innovative designs, and excellent customer service. With 3 stocking warehouses in the USA and 2 in Canada, Lotus LED Lights can ship most orders the same day to deliver the next or 2nd-day ground to 80% of our 4,000+ distributors across North America.
