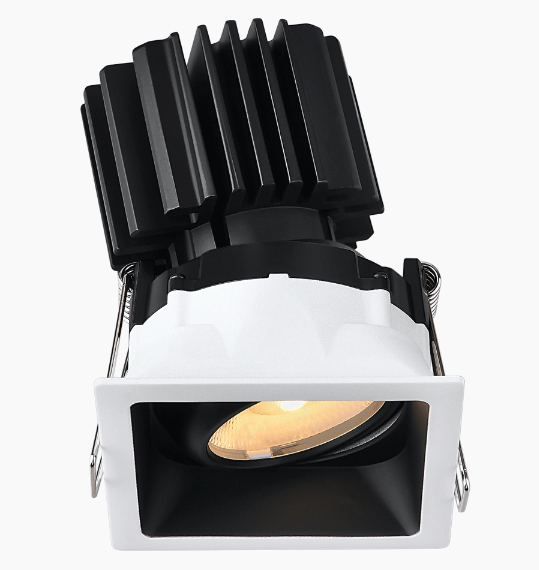

Lotus LED Lights L3G-SRT-WB-LB24-3K98 Tangra 3 Inch Gimbal Square Recessed Thin White-Black Duo Trim Lens Black 24° 30K CRI98

Lotus LED Lights L3G-SRT-WB-LB24-3K98

L3G-SRT-WB-LB24-3K98 Product Description

L3G-SRT-WB-LB24-3K98 is a premium recessed LED wall baffle downlight from the Tangra® series by Lotus LED Lights, designed for precision wall washing and architectural accent lighting. Manufactured in Canada, it features a durable cast aluminum housing with refined optics for clean, glare-free illumination.

This configuration features a White Baffle (WB) trim combined with a 24° linear baffle optic (LB24), producing a controlled, uniform light distribution ideal for highlighting walls, corridors, or vertical surfaces while minimizing hotspots and glare. The 3000K LED with CRI 98 (3K98) delivers warm white illumination with exceptional color rendering, ensuring natural, vibrant appearance of materials and finishes.

Specifications:

SKU: L3G-SRT-WB-LB24-3K98
Brand: Lotus LED Lights
Power: 11W / 15W user selectable with Lotus Tangra drivers
Color Temperature: 3,000K
Lumens: Up to 1600 lm at 3000K CRI95
Light beam: 24° with 20° tilt and 360° rotation
Fixture Input: 20-40V DC Max 350 mA Constant Current
CRI: 98
Trim Color: White-Black Duo
Optics: Black Lens
Driver Options: 120V AC Triac Dimmable 11W / 15W Selectable – 120V-347V AC 0-10V Dimmable 11W / 15W Selectable
J-Box Wire Volume: Max 5 No 12 AWG or 8 No 14 AWG
Cable Rating: FT6 / CMP Open Plenum
Operating Temp: -40°F (-40°C) to +113°F (+45°C)
Projected Life: 70% Light Output at 50,000 Hours
ID: 2 3/4″
OD: 3″
Height: 3 7/8″
Cut out: 2 5/8″
Certification: c ETL us, FCC, Type IC, Air Tight, Open Plenum, Wet Location IP54
Warranty: Lotus warranties for as long as we manufacture this line + 5 years

About Lotus LED Lights:

Lotus LED Lights is a family-owned and operated business specializing in LED lighting. We design, produce, and distribute to electrical wholesalers slim LED recessed lighting fixtures of high quality and with unique features.

We believe in what we do and support our customers by not discontinuing products as they evolve. The company’s success is rooted in providing a wide variety of high-quality products, innovative designs, and excellent customer service. With 3 stocking warehouses in the USA and 2 in Canada, Lotus LED Lights can ship most orders the same day to deliver the next or 2nd-day ground to 80% of our 4,000+ distributors across North America.
