Lotus LED Lights L3G-RIT-WH-RC20-4C90
L3G-RIT-WH-RC20-4C90 Product Description

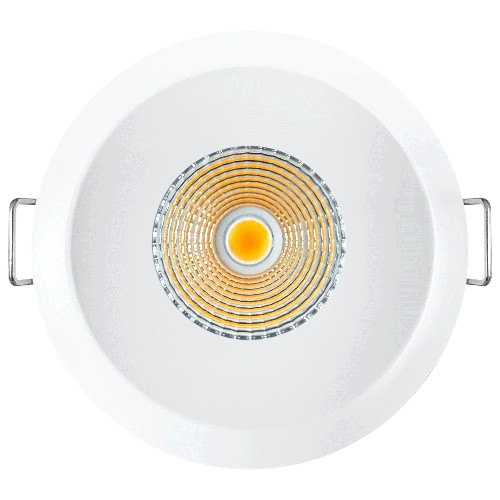

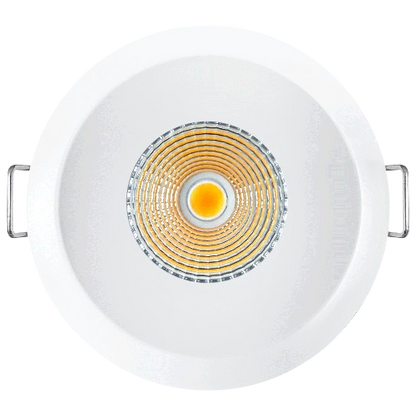

The L3G-RIT-WH-RC20-4C90 is a precision trimless gimbal recessed downlight designed for focused and high-quality architectural lighting. Featuring a white invisible trim with a reflector and clear lens optic, it provides a sleek, minimalist ceiling appearance while delivering controlled, glare-reduced illumination.
With a narrow 20° beam angle, this fixture is ideal for accent lighting, highlighting architectural details, and focused task lighting where precision and visual comfort are essential. The static LED delivers a crisp 4000K color temperature with CRI 90, ensuring accurate color rendering and bright, neutral light for professional and residential applications.
Specifications:
SKU: L3G-RIT-WH-RC20-4C90
Brand: Lotus LED Lights
Power: 11W / 15W user selectable with Lotus Tangra drivers
Color Temperature: 4CCT: 2,200 / 2,700 / 3,000 / 4,000K + DTW 3,500K to 2,700K
Lumens: Up to 1600 lm at 3000K CRI95
Light beam: 20° with 20° tilt and 360° rotation
Fixture Input: 20-40V DC Max 350 mA Constant Current
CRI: 90
Trim Color: White
Optics: Reflector with Clear glass
Driver Options: 120V AC Triac Dimmable 11W / 15W Selectable – 120V-347V AC 0-10V Dimmable 11W / 15W Selectable
J-Box Wire Volume: Max 5 No 12 AWG or 8 No 14 AWG
Cable Rating: FT6 / CMP Open Plenum
Operating Temp: -40°F (-40°C) to +113°F (+45°C)
Projected Life: 70% Light Output at 50,000 Hours
ID: 3 1/4″
OD: 4 3/4″
Height: 3 7/8″
Cut out: 3″
Certification: c ETL us, FCC, Type IC, Air Tight, Open Plenum, Wet Location IP54
Warranty: Lotus warranties for as long as we manufacture this line + 5 years
