Lotus LED Lights L3G-RIT-WH-LW36-3K98
L3G-RIT-WH-LW36-3K98 Product Description

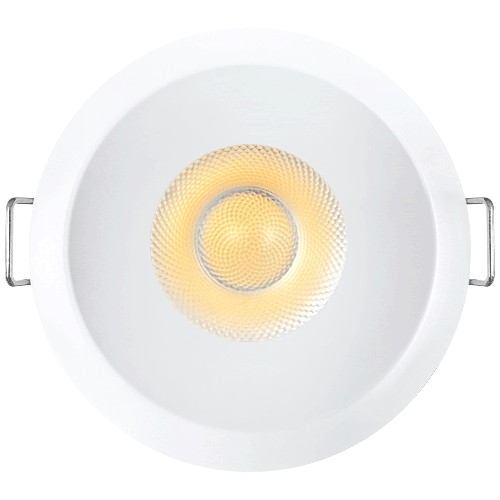

The L3G-RIT-WH-LW36-3K98 is a premium 3-inch trimless gimbal recessed LED downlight from the Lotus LED Lights Tangra series. Designed for architectural precision, it features an invisible white trim and an adjustable gimbal that accommodates sloped ceilings and directional wall washing applications. The solid cast aluminum construction ensures durability, efficient heat dissipation, and long-term performance.
Specifications:
SKU: L3G-RIT-WH-LW36-3K98
Brand: Lotus LED Lights
Product series: Tangra 3" Gimbal Round Invisible Trim
Application: Task lighting, sloped ceiling up to 20°, wall washing, trimless
Construction: Solid cast aluminum body
Mounting: Trimless gimbal recessed
Cut out: 3 1/4"
Aperture: 3"
Trim finish: White
Optic type: LW – White lens
Beam angle: 36°
Light source: Cree COB LED
Lumen output: Up to 1600 lm at 3000K CRI95 (CRI98 option slightly reduced)
Color temperature: 3000K
Color rendering: CRI 98
SDCM: 3-step bin
Power: 11W / 15W user selectable with Lotus Tangra drivers
Input voltage: 120V or 120–347V depending on driver
Dimming: Triac or 0–10V depending on driver
Minimum dimming: 3% with reverse phase cut / 0.4% forward phase cut
Driver location: Remote, required, ordered separately
Maximum constant current: 350 mA
J-box wire volume: Max 5 No.12 AWG or 8 No.14 AWG with TF/CMP cable
Operating temperature: -40°C to +45°C
Projected life: 70% light output at 50,000 hours
Certifications: cETLus, FCC, Type IC, Airtight, Open Plenum, Wet Location IP54
Warranty: 5 years
About Lotus LED Lights:
Lotus LED Lights is a family-owned and operated business specializing in LED lighting. We design, produce, and distribute to electrical wholesalers slim LED recessed lighting fixtures of high quality and with unique features.
We believe in what we do and support our customers by not discontinuing products as they evolve. The company’s success is rooted in providing a wide variety of high-quality products, innovative designs, and excellent customer service. With 3 stocking warehouses in the USA and 2 in Canada, Lotus LED Lights can ship most orders the same day to deliver the next or 2nd-day ground to 80% of our 4,000+ distributors across North America.
