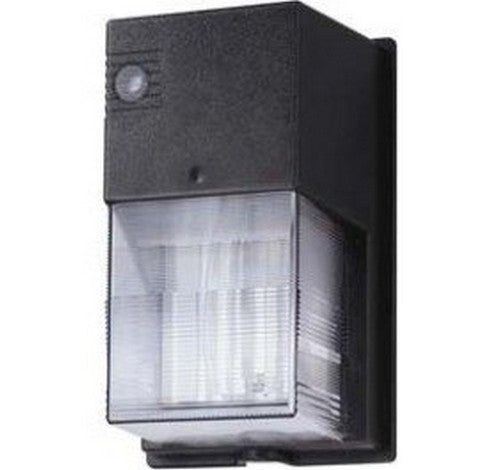

Lithonia Lighting TWS 26W Triple-Tube Dark Bronze Outdoor Flood Wall PacK 120V
2
sold in last
8
hours
LITH-TWS-26TRT-120-PE-L/LP-M6
$90.14
customers are viewing this product
PRODUCT DESCRIPTION
For entrances, stairwells, corridors and other pedestrian areas.
FEATURES:
Finish: Dark Bronze
Wattage: 26 W
Lamping: TRT
Voltage: 120V
Control Options: Photoelectric cell
Construction: Cast aluminum backplate on which electrical components are mounted for maximum heat dissipation. Gasketing between backplate and front cover prevents entry of water and comtaminants. External hardware includes Phillips head and tamperproof hex-head fasteners.
Socket: Porcelain, medium-base socket with copper alloy nickel-plated screw shell and center contact.
Installation: Units for wall mounting include two 3/4" knockouts for routing electrical conduit back and bottom.
SPECIFICATIONS :
INTENDED USE
For entrances, stairwells, corridors and other pedestrian areas.
CONSTRUCTION
Cast aluminum backplate. Gasketing between backplate and front cover prevents the entry of water and contaminants. External hardware includes
phillips head and tamper-proof hex-head fasteners.
FINISH
Dark bronze (DDB) or white (DWH) front cover available for all wattages.
OPTICAL SYSTEM
Front cover/refractor is injection-molded, one-piece, UV-stabilized polycarbonate. The optical system is sealed and gasketed to inhibit the entrance of
outside contaminants.
ELECTRICAL SYSTEM
The 13W fluorescent uses a 120V electro-magnetic ballast and includes a
twin tube fluorescent lamp as standard. The 26/42W fluorescent uses a multivolt electronic ballast and offers the option of 120-277V operation and also
the option of 26W, 32W or 42W triple tube fluorescent lamp (not included).
INSTALLATION
Units are for wall mounting and include two 3/4" knockouts for routing electrical conduit.
LISTING
UL listed for wet locations. Listed and labeled to comply with Canadian Standards.
FEATURES:
Finish: Dark Bronze
Wattage: 26 W
Lamping: TRT
Voltage: 120V
Control Options: Photoelectric cell
Construction: Cast aluminum backplate on which electrical components are mounted for maximum heat dissipation. Gasketing between backplate and front cover prevents entry of water and comtaminants. External hardware includes Phillips head and tamperproof hex-head fasteners.
Socket: Porcelain, medium-base socket with copper alloy nickel-plated screw shell and center contact.
Installation: Units for wall mounting include two 3/4" knockouts for routing electrical conduit back and bottom.
SPECIFICATIONS :
INTENDED USE
For entrances, stairwells, corridors and other pedestrian areas.
CONSTRUCTION
Cast aluminum backplate. Gasketing between backplate and front cover prevents the entry of water and contaminants. External hardware includes
phillips head and tamper-proof hex-head fasteners.
FINISH
Dark bronze (DDB) or white (DWH) front cover available for all wattages.
OPTICAL SYSTEM
Front cover/refractor is injection-molded, one-piece, UV-stabilized polycarbonate. The optical system is sealed and gasketed to inhibit the entrance of
outside contaminants.
ELECTRICAL SYSTEM
The 13W fluorescent uses a 120V electro-magnetic ballast and includes a
twin tube fluorescent lamp as standard. The 26/42W fluorescent uses a multivolt electronic ballast and offers the option of 120-277V operation and also
the option of 26W, 32W or 42W triple tube fluorescent lamp (not included).
INSTALLATION
Units are for wall mounting and include two 3/4" knockouts for routing electrical conduit.
LISTING
UL listed for wet locations. Listed and labeled to comply with Canadian Standards.
