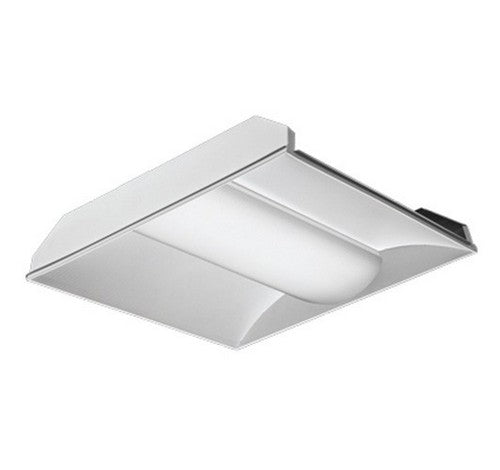

Lithonia Lighting LITH-2VTL2-33L VTL 2x2 29W LED Troffer 120-277V

Lithonia 2VTL2 33L ADP EZ1 LP840 2x2 LED troffer offers high performance LED engines and LED life rate of 60,000 hours. 2VTL2 33L ADP EZ1 LP840 LED troffer is meant to replace a 2-Lamp T8 fluorescent fixture by emitting 3821 lumens with a 4000K color temperature while using 29 watts. VT LED troffer mounts into standard 1" and 9/16" t-bar or screw slot grids. Suitable to mount in damp locations makes VT series LED troffer to be mounted in schools, hallways, healthcare facilities and more indoor retail spaces.

FEATURES :

LED life rated 60,000 hours
Fixture is able to be mounted and wired in continuous rows
Mounts into standard 1" and 9/16" t-bar or slot grids
Volumetric illumination is achieved by the design of the VT series
5 year warranty

SPECIFICATIONS :

SKU : LITH-2VTL2-33L
Brand : Lithonia
Usually Ships In : 5 to 10 Business Days
Light Bulb : Included
Length (Inches) : 24
Width (Inches) : 24
Height (Inches) : 4-3/8
Application : Indoor
Size : 2x2
Listing : cUL, DLC, UL
Expedite : No
Oversize : No
Eligible for Free Ground Shipping : Yes

CONSTRUCTION :
Rugged, one-piece cold-rolled steel coated polyester, painted after fabrication with embossed facets. Impact-modified, single clear acrylic diffuser provides excellent shielding and wide distribution. End plates include integral T-bar clips. Fixture may be mounted and wired in continuous rows. Total fixture height is only 4-3/8".

OPTICS :
Volumetric illumination is achieved by creating an optimal mix of light to walls, partitions, vertical and horizontal work surfaces — rendering the interior space, objects and occupants in a more balanced, complementary luminous environment. Linear faceted reflector cavity softens and distributes light into the space while minimizing luminous contrast between the fixture and ceiling. Sloped end plates provide a smooth, luminous transition between fixture and ceiling while enhancing the perception of fixture depth.
High-performance diffuser provides LED concealment, even illumination across the diffuser and improved lumen-per-watt performance.
Now available with two different aesthetics including the standard Acrylic Linear Prismatic Diffuser (ADP) and the Acrylic Linear Prismatic Diffuser with Diffuser Trim Rings (ADPT).

ELECTRICAL :
Long-life LEDs, coupled with high-efficiency drivers, provide superior quantity and quality of illumination for extended service life. 80% LED lumen maintenance at 60,000 hours (L80/60,000).
eldoLED driver options deliver choice of dimming range, and choices for control, while assuring flicker-free, low-current inrush, 89% efficiency and low EMI.
Optional integrated nLight® controls make each luminaire addressable, allowing them to digitally communicate with other nLight enabled controls such as dimmers, switches, nLight AIR RIO, RES7 occupancy sensors, and photocontrols. Simply connect all the nLight enabled control devices and the VTLED luminaires using standard Cat-5 cabling, or the nLight AIR wireless network. Unique plug-and-play convenience allows devices and luminaires to automatically discover each other and self-commission.
Lumen Management: Unique lumen management system (option N80) provides on board intelligence that actively manages the LED light source so that constant lumen output is maintained over the system life, preventing the energy waste created by the traditional practice of over-lighting.
Step-level dimming option allows system to be switched to 50% power for compliance with common energy codes while maintaining fixture appearance.
Driver disconnect provided where required to comply with US and Canadian codes.

SENSOR
Integrated sensor (individual control): Sensor Switch MSD7ADCX (Passive infrared (PIR)) or MSDPDT7ADCX (PIR/Microphonics Dual Tech (PDT)) integrated occupancy sensor /automatic dimming photocell allows the luminaire to power off when the space is un-occupied or enough ambient light is entering the space. See page 2 for more details on the integrated sensor.

Integrated Sensor (nLight Wired Networking): This sensor is nLight-enabled, meaning it has the ability to communicate over an nLight network. When wired, using CAT-5 cabling, with other nLight-enabled sensors, power packs, or WallPods, an nLight control zone is created. Once linked to a Gateway, directly or via a Bridge, the zone becomes capable of remote status monitoring and control via SensorView software. See page 2 for the nLight sensor options.

Integrated Smart Sensor (nLight Air Wireless Platform): The RES7 sensor is nLight AIR enabled, meaning it has the ability to communicate over the wireless nLight control platform. It is available with an automatic dimming photocell, and either a digital PIR microphonics dual technology (PDT)occupancy sensor. It pairs to other luminaires and wall switches through our mobile app, CLAIRITY, which allows for simple sensor adjustment. See page 4 for more details on the Integrated Smart Sensor.

INSTALLATION
Unique grid interfacing arrangement provides mounting into standard 1" and 9/16" tee bar or screw slot grids. 9/16" allows fixture trim to hang level with architectural ceiling tiles. Drywall ceiling adaptors available. Suitable for damp location.

LABLES And LISTINGS
CSA Certified
U.S. and Canadian standards
IC rated.
DesignLights Consortium® (DLC) Premium qualified product.
DLC Premium qualified
