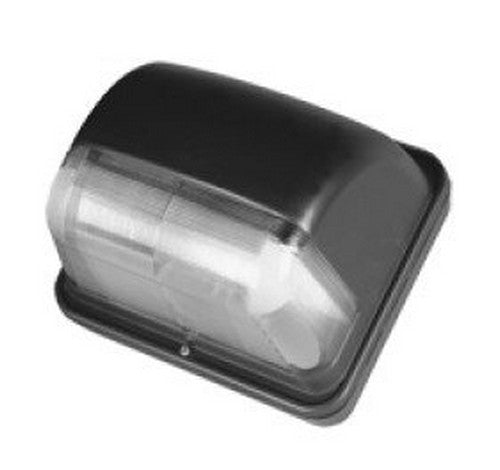

For entrances, stairwells, corridors and other pedestrian areas.
FEATURES:
Finish: Dark Bronze
Wattage: 42W
Lamping: TRT
Voltage: 120V-277V
Ballast: Electronic
Construction: Rear housing is rugged, die-cast aluminum. Front cover is one-piece, UV-resistant, injection-molded polycarbonate, internally painted. Captive external hardware is treated for corrosion resistance and includes slotted hex-head and tamper-proof fasteners.
Socket: Porcelain, horizontally oriented medium-base socket with copper alloy, nickel-plated screw shell and center contact.
Installation: Mount to any vertical surface or to a 4" round square outlet box. Back access through gasketed slot. Top wiring access through 1/2" threaded conduit entry. Through-wiring requires use of a conduit tee. Photocells are field-installable.
SPECIFICATIONS :
INTENDED USE
For entrances, stairwells, corridors and other pedestrian areas.
CONSTRUCTION
Rear housing is rugged, corrosion-resistant, die-cast aluminum. Front cover is
one-piece UV-resistant injection molded polycarbonate, internally painted. Captive external hardware is
specially treated for corrosion resistance and includes slotted hex-head and tamperproof fasteners.
FINISH
Dark bronze (DDB) corrosion-resistant polyester powder.
OPTICAL
One-piece die-formed reflector is diffused aluminum. Refractor is clear UV stabilized polycarbonate. Front cover is sealed and gasketed to inhibit the entrance of outside contaminants.
ELECTRICAL
Compact fluorescent ballasts are multi-volt (120-277) electronic high power factor. UL
Listed. Four-pin positive latching thermoplastic socket.All components are heat-sinked directly to the cast housing for maximum heat dissipation.
INSTALLATION
Mount to any vertical surface or to a 4” outlet box. Back access through gasketed
slot. Top wiring access through 1/2” threaded conduit entry. Through-wiring requires use of a conduit tee.Photocells are field-installable.
LISTING
UL listed for wet locations. IP65 rated. UL Listed to US and Canadian safety standards. NOM Certified.
WARRANTY
1-year limited warranty
