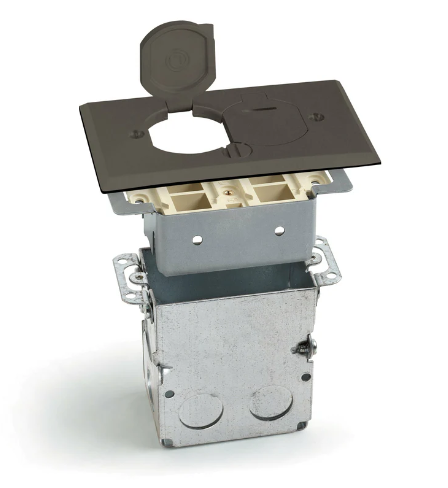

Lew Electric SWB-2-LR-DB-T Recessed Floor Plate W/ Box, 4 Port Keystones & 2 Flip Lids, Dark Broze
2 sold in last 8 hours
customers are viewing this product
Lew Electric SWB-2-LR-DB-T
SWB-2-LR-DB-T Product DescriptionThe Lew Electric SWB-2-LR-DB-T is a recessed floor plate with dark bronze cover, also included is the back box for your 1/2" conduit connections. Inside the floor box is an empty 4 port keystone plate, add in whatever keystone connections you like. The sleeve in the box is adjustable up to 3/4" to accommodate any floor making installation a snap, screws are included to attach the plate to the receptacle box. The box may be attached directly to the subfloor or routed into a finished floor. The cover has two flip lids for fast access to the outlets. The box features a watertight assembly, there is a durable 1/16" neoprene rubber gasket that goes between the receptacle and plate. The box is UL listed, and the receptacle is UL listed and meets heavy duty requirements for display receptacles. This floor box is a simple and economical solution to provide your power in a small and attractive plate.
Specification:Plate: 1/8" dark bronze
Empty 4 port keystone plate
2 flip lids
Adjustable up to 3/4"
Attach to floor or route into finished floor
Includes 1/16" neoprene rubber gasket
Box UL # E345966
Outlet UL # E333616
Meets NEMA WD1-1983 requirement
Several knockouts for conduit
Includes plate screws
Cover size: 4 5/8" x 2 7/8"
Back box size: 3"L x 2"W x 3.5"H
Cutout size: Can't exceed 2 1/8" x 3 1/2"
Capacity: 18 cubic inches
Warranty: 1 year
About Lew Electric:Lew Electric Fittings Company is a family owned and operated company founded in 1901. It provides personal customer service that helped turn that one floor box Jacob created into the largest variety of not only floor boxes, but kitchen counter top electrical boxes and even outdoor electrical boxes seen in the industry today. Its the market leading provider of residential floor boxes as well as manufacturers of floor boxes for homes, churches, airports, sports stadiums, highways-any type of facility that needs electrical boxes where wall boxes are insufficient.
