Lew Electric 532-DA

532-DA Product Description

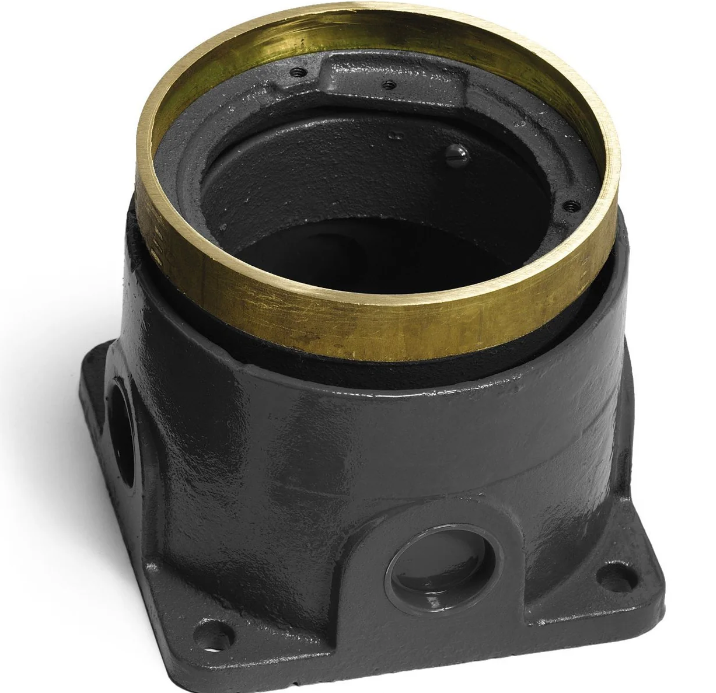

The Lew Electric 532-DA is a round die cast aluminum concrete floor box with a brass top flange. The box is fully adjustable and offers 1/2" of adjustability after it is installed via 3 screws with just a screwdriver. The 4" deep box is perfect for concrete pours between 4" and 6", and there are 32 cubic inches of interior space available. There are four 3/4" knockouts on the sides of the box to run your wires to. The box ships with a protective cement cap to keep the box clean and safe during concrete pouring. The box does not ship with a cover, there are several options available that are sold separately, Lew 4" cover plates will fit flush. If the box is to be used in carpeted areas, a sold separately carpet flange can be ordered, the SCF-1 series carpet flange adds 3/8" of height to accommodate the carpet and padding. For tile applications no flange is needed, simply pour your concrete to the level of the tile frame less the thickness of the tile

Specification:

Top: Brass flange
Requires cover, sold separately
Size: Single gang
For concrete installations
Offers 1/2" of adjustability post installation
32 cubic inches of interior space
Four 3/4" knockouts
UL and cUL listed, # 514A, 489H
Includes construction cap
Box dimensions:  4.25" round
Depth:  4.043" deep
Can be used with carpet or tile
