Lew Electric 12200

12200 Product Description

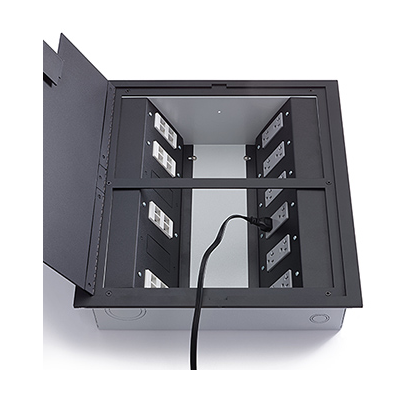

THE 12200 SERIES RECESSED/ACCESS BOX is a twelve-gang dual service floor box for use in a poured concrete floor, raised floor or wood floor. The box is constructed of 16 ga. galvanized steel and comes complete with heavy duty hot-rolled steel cover, in black or stainless steel. The units are shipped with disposable sheet metal covers to protect the box during concrete pour. The box is supplied with two (½ – ¾” combination) NPS conduit knockouts on the power side for conduit feed. The COMM/AV side has two (1 ½-2″ combination) NPS conduit knockouts. The unit comes complete with four adjustable legs for pre-pour adjustment. For raised floor or wood floor applications, disregard the adjustable leg hardware. All gangs are supplied with blank/decora knockout plates that accepts most decora receptacles, GFCI receptacles and low voltage yokes.

Specification:

Base Box dimensions 15″ W x 15″ L x 5″ D
Finish Cover / Construction Cover dimensions 16″ W x 17.5 L” x 0.27″ T
Heavy Duty – Hot Rolled Steel Finish Cover w/ Cable Exit Doors
Construction Cover – HR Steel
Santex Powder Coat Finish
Cover colors are Black or Stainless steel
12x Knockout style Decora Openings
POWER SIDE: 2X (½ – ¾”) NPS KO’s on side
COMM/AV SIDE: 2X (1 ½-2″) NPS KO’s on side
Spacer rings available if required
