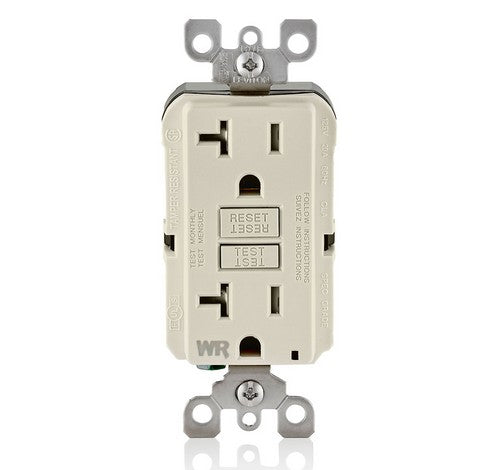

LEVITON GFWT2 Self-Test SmartlockPro Slim Weather-Resistant and Tamper-Resistant Receptacle with LED Indicator 20A / 125 VAC

2 sold in last 8 hours
LEVITON
GFWT2-W
$17.00
$17.00
customers are viewing this product
20 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Self-test SmartlockPro Slim Weather & Tamper-Resistant GFCI, Monochromatic, Residential/Commercial applications, back and side wired, wallplate/faceplate sold separately - White

Peace of mind, all the time. The SmartlockPro Self-Test GFCI tests itself even if you forget. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton’s patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The SmartlockPro Self-Test GFCI is the smart choice in ground fault circuit interrupter protection.

FEATURES:

Amperage: 20 A
At Rated Voltage: 1 HP
Brand: SmartlockPro
Color: White
Feature: Self-Test
Fed Spec WC-596: Yes
Grade: Residential/Commercial Specification Grade
Grounding: Green Ground Screw
NEMA: 5-20R
Pole: 2
Standards and Certifications: UL/CSA
Strap Material: Stainless Steel
Tamper Resistant: Yes
Termination: Back & Side
Trip Level: Class A, 5mA plus or minus 1mA
Type: Weather Resistant
Voltage: 125 VAC
Warranty: 2-Year Limited
Wire: 3

SPECIFICATIONS:

AC Horsepower Ratings
At Rated Voltage: 1 HP
Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Short Circuit Current Rating: 10KA
Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current

Electrical
Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Operating Temperature: -35C to +66C
Short Circuit Current Rating: 10KA
Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current

Environmental
Body Material: Polycarbonate
Clamps: Brass
Face Material: Polypropylene
Grounding Screw: Stainless Steel
Line Contacts: Brass Double-Wipe .031 Thick
Notes: Wallplate Sold Separately
Operating Temperature: -35C to +66C
Terminal Screws: Stainless Steel
Yoke: Stainless Steel

Material
Body Material: Polycarbonate
Clamps: Brass
Face Material: Polypropylene
Grounding Screw: Stainless Steel
Line Contacts: Brass Double-Wipe .031 Thick
Notes: Wallplate Sold Separately
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Screws: Stainless Steel
Yoke: Stainless Steel

Mechanical
Amperage: 20 A
Body Material: Polycarbonate
Brand: SmartlockPro
Color: White
Face Material: Polypropylene
Feature: Self-Test
Fed Spec WC-596: Yes
Grade: Residential/Commercial Specification Grade
Grounding: Green Ground Screw
NEMA: 5-20R
Notes: Wallplate Sold Separately
Pole: 2
Product ID: Ratings are permanently marked on device
Standards and Certifications: UL/CSA
Strap Material: Stainless Steel
Tamper Resistant: Yes
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back & Side
Trip Level: Class A, 5mA plus or minus 1mA
Type: Weather Resistant
Voltage: 125 VAC
Warranty: 2-Year Limited
Wire: 3

Standards and Certifications
ANSI: C-73
CSA C22.2 No. 42: Yes
CSA-C22.2 No. 144.1-06: File LR-57811
Fed Spec WC-596: Yes
MIL-SPEC: A-A-55459-SB
NEMA: WD-6
NOM: Yes
UL 943: File E48380
UL498: Yes
