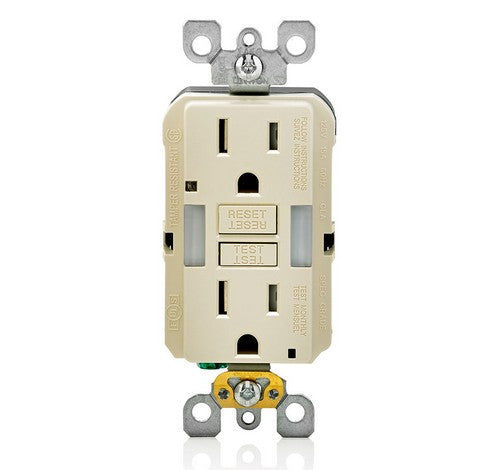

LEVITON GFNL1 Self-Test Tamper Duplex Receptacle with Guide Light 15A / 125 VAC

15 Amp, 125 Volt Receptacle/Outlet, 20 Amp Feed-Through, Tamper-Resistant, Self-test SmartlockPro Slim Guide Light GFCI, Monochromatic, back and side wired, self-grounding clip included, wallplate/faceplate sold separately - White

The Self-test SmartlockPro Slim GFCI/Guide Light is a great way to add an extra element of safety when it’s dark without losing outlet space in kitchens, bathrooms, laundry rooms and hospitality guest suites. Instead of needing to plug in a nightlight and take up an outlet space, the device offers dual LED guide lights that turn ON and OFF automatically based on light levels and uses only 1W of electricity. Designed to meet the latest UL standard for auto-monitoring (self-test) our complete line of self-test GFCIs periodically conduct an automatic internal test to confirm that it can respond to a ground fault. With the slimmest profile on the market, the device allows for fast and easy installation, while Leviton’s patented reset lockout mechanism prevents reset of the GFCI if it is not wired or operating correctly. The Self-test SmartlockPro Slim GFCI/Guide Light is the smart choice in ground fault circuit interrupter protection.

FEATURES:

ANSI: C-73
Amperage: 15 A
At Rated Voltage: 1 HP
Brand: SmartlockPro
Color: White
Feature: Self-Test
Fed Spec WC-596: Yes
Grade: Residential/Commercial Specification Grade
Grounding: Self Grounding
NEMA: 5-15R
Pole: 2
Standards and Certifications: UL/CSA
Strap Material: Galvanized Steel
Tamper Resistant: Yes
Termination: Back & Side 20A Feed-Thru
Trip Level: Class A, 5mA plus or minus 1mA
Type: Combination with Light
Voltage: 125 VAC
Warranty: 2-Year Limited
Wire: 3

SPECIFICATIONS:

AC Horsepower Ratings
At Rated Voltage: 1 HP
Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Short Circuit Current Rating: 10KA
Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current

Electrical Specifications
Dielectric Voltage: Withstands 1250VAC per UL 943 and CSA-C22.2 No. 144.1-06
Operating Temperature: -35C to +66C
Short Circuit Current Rating: 10KA
Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current

Environmental
Body Material: Thermoplastic
Clamps: Brass
Face Material: Thermoplastic
Grounding Screw: Plated Steel
Line Contacts: Brass Double-Wipe .031 Thick
Notes: Wallplate Sold Separately
Operating Temperature: -35C to +66C
Terminal Screws: Plated Steel
Yoke: Zinc-Plated Steel

Material
Body Material: Thermoplastic
Clamps: Brass
Face Material: Thermoplastic
Grounding Screw: Plated Steel
Line Contacts: Brass Double-Wipe .031 Thick
Notes: Wallplate Sold Separately
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Terminal Screws: Plated Steel
Yoke: Zinc-Plated Steel

Mechanical
ANSI: C-73
Amperage: 15 A
Body Material: Thermoplastic
Brand: SmartlockPro
Color: White
Face Material: Thermoplastic
Feature: Self-Test
Fed Spec WC-596: Yes
Grade: Residential/Commercial Specification Grade
Grounding: Self Grounding
NEMA: 5-15R
Notes: Wallplate Sold Separately
Pole: 2
Product ID: Ratings are permanently marked on device
Standards and Certifications: UL/CSA
Strap Material: Galvanized Steel
Tamper Resistant: Yes
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back & Side 20A Feed-Thru
Trip Level: Class A, 5mA plus or minus 1mA
Type: Combination with Light
Voltage: 125 VAC
Warranty: 2-Year Limited
Wire: 3

Standards and Certifications
ANSI: C-73
CSA C22.2 No. 42: Yes
CSA-C22.2 No. 144.1-06: File LR-57811
Fed Spec WC-596: Yes
NEMA: WD-6
NOM: Yes
UL 943: File E48380
UL498: Yes
