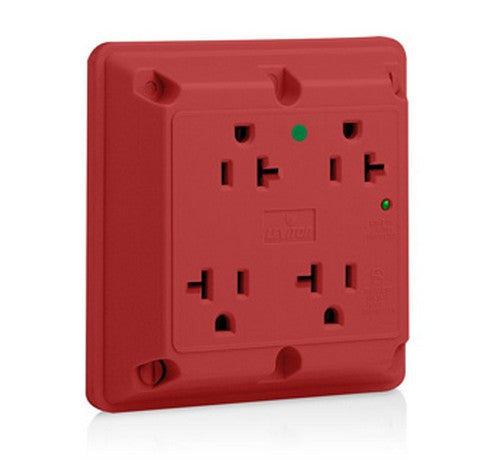

Leviton 8490 4-in-1 Surge Protective Quadruplex Receptacle Outlet, Heavy-Duty Hospital Grade 125V AC

2 sold in last 8 hours
LEVITON
8490-W
$58.00
$58.00
customers are viewing this product
Leviton's Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are listed to UL 1449 3rd Edition Standards. Leviton's outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions. 20 Amp, 125 Volt, 4-In-1 Receptacle, Straight Blade, Industrial Series Extra Heavy Duty Hospital Grade, Grounding, Surge with Indicator Light, White.

FEATURES:

Amperage: 20 A
Body Material: Nylon
Brand: 4-in-1
Color: White
Device Type: Quadruplex Receptacle
Diagnostics: Indicator Light
Face Material: Nylon
Feature: Surge
Function: Surge Protective
Grade: Heavy-Duty Hospital Grade
Grounding: Grounding
Joules Rating: 720
Max Surge Current L-N: 24kA
NEMA: 5-20R
Noise Rejection: -30dB at 500kHz-30MHz
Pole: 2
Standards and Certifications: UL/CSA
Strap Material: Steel
Termination: Back or Side Wire
UL1449 Impulse 6kV/500A L-N: 330V
Voltage: 125 VAC
Warranty: 10 Year Limited
Wire: 3

SPECIFICATIONS:

AC Horsepower Ratings
At Rated Voltage: 1 HP

Electrical
Amperage: 20 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Pole: 2
Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
Voltage: 125 VAC
Wire: 3

Environmental
Flammability: Rated V-2 per UL94
Operating Temperature: -40°C to 60°C

Material
Body Material: Nylon
Face Material: Nylon
Grounding Screw: Steel 8-32 w/ 12AWG Green 8 Inch Pigtail
Line Contacts: Phosphor Bronze
Mounting Screws: Zinc-Plated Steel 8-32
Terminal Screws: Brass 8-32
Yoke: Zinc-Plated Steel

Mechanical
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-12 AWG
Terminal ID: Brass-Hot, Green-Ground, White-Neutral
Termination: Back or Side Wire

Performance Data
Diagnostics: Indicator Light
Joules Rating: 720
MCOV: 150V rms
Max Surge Current L-N: 24kA
Noise Rejection: -30dB at 500kHz-30MHz
Nominal Discharge Current Rating: 3kA
Short Circuit Current Rating: 5kA
UL1449 Impulse 6kV/500A L-N: 330V
VPR: L-N:500V, L-G:600V, N-G:500V

Standards and Certifications
ANSI: C-73
CSA C22.2 No. 42: File 152105
NEMA: WD-1 WD-6
NOM: 057
UL Fed Spec WC-596: File E13399
UL498HG: File E13399
