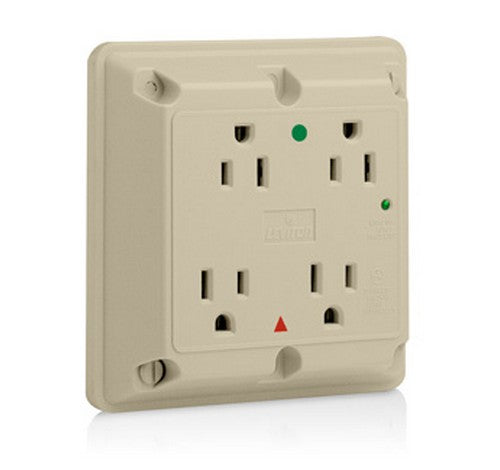

Leviton 8480 4-in-1 Surge Protective Isolated Ground Quadruplex Receptacle Outlet Heavy-Duty Hospital Grade 125V AC

2 sold in last 8 hours
customers are viewing this product
Leviton’s Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton’s outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.


Body Material: Nylon
Brand: 4-in-1
Color: White
Device Type: Quadruplex Receptacle
Function: Surge Protective Isolated Ground
Grade: Heavy-Duty Hospital Grade
NEMA: 5-15R
Termination: Back or Side Wire
UL1449 Impulse 6kV/500A L-N: 330V


Amperage: 15 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Isolated Ground
Pole: 2
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 125 VAC
Wire: 3

Flammability: Rated V-2 per UL94
Operating Temperature: -40°C to 60°C

Body Material: Nylon
Clamp Nuts: Zinc-Plated Steel
Face Material: Nylon
Ground Clips: Brass-Plated Steel
Grounding Screw: Brass-Plated Steel
Line Contacts: Brass Triple-Wipe
Mounting Screws: Zinc-Plated Steel 8-32
Shutter Mechanism: Delrin® Acetal
Terminal Screws: Brass-Plated Steel
Yoke: Zinc-Plated Steel

Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back or Side Wire
Torque Range: 14-16 inch pounds

Performance Data
Diagnostics: Indicator Light
Joules Rating: 720
MCOV: 150V rms
Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA)
Noise Rejection: -30dB at 500kHz-30MHz
Nominal Discharge Current Rating: 3kA
Short Circuit Current Rating: 5kA
UL1449 Impulse 6kV/500A L-N: 330V
VPR: L-N:500V, L-G:600V, N-G:500V

Standards and Certifications
ANSI: C-73
Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
NOM: 057
UL Fed Spec WC-596: File E13399
UL498HG: File E13399

Product Warranty: 10-Year Limited
Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
