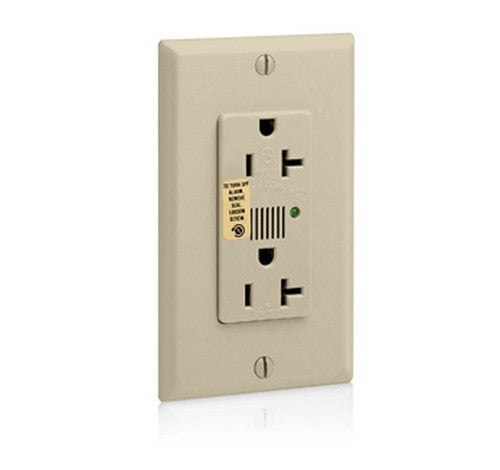

Leviton 7380 Decora Plus Surge Protective Duplex Receptacle Outlet 125V AC

2 sold in last 8 hours
LEVITON

7380-W

$44.00
$44.00
customers are viewing this product
Leviton’s Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton’s outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.

FEATURES:

Brand: Decora Plus
Color: White
Device Type: Duplex Receptacle Outlet
Function: Surge Protective
Grade: Commercial Specification Grade
NEMA: 5-20R

SPECIFICATIONS:

AC Horsepower Ratings
At Rated Voltage: 1 HP

Electrical
Amperage: 20 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Self-Grounding
Pole: 2
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 125 VAC
Wire: 3

Environmental
Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 60°C

Material
Body Material: Polycarbonate
Clamp Nuts: Zinc-Plated Steel
Face Material: Polycarbonate
Ground Clips: Brass-Plated
Grounding Screw: Plated Steel
Line Contacts: Brass Triple-Wipe
Strap Material: Steel
Terminal Screws: Brass 10-32

Mechanical
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back or Side Wire
Torque Range: 14-16 inch pounds

Performance Data
Diagnostics: Indicator Light & Audible Alarm
Joules Rating: 720
MCOV: 150V rms
Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA)
Noise Rejection: -30dB at 500kHz-30MHz
Nominal Discharge Current Rating: 3kA
Short Circuit Current Rating: 5kA
VPR: L-N: 600V, L-G: 700V, N-G: 600V

Standards and Certifications
ANSI: C-73
Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
NEMA: WD-6
NOM: 057

Warranty
Product Warranty: 10-Year Limited
