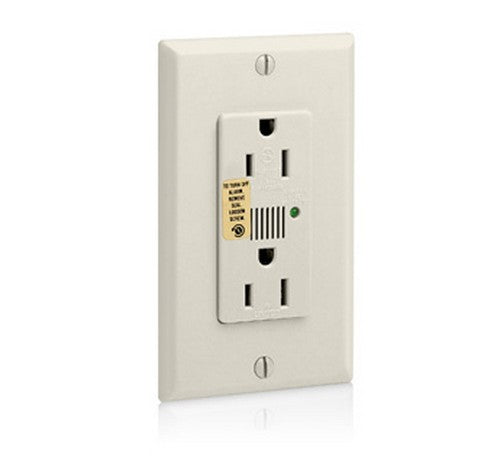

Leviton 7280 Decora Plus Surge Protective Duplex Receptacle Outlet 125V AC

2 sold in last 8 hours
LEVITON
7280-W
$39.00
$39.00
customers are viewing this product
Leviton’s Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton’s outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.

FEATURES:

Body Material: Thermoplastic Nylon
Brand: Decora Plus
Color: White
Device Type: Duplex Receptacle Outlet
Face Material: Thermoplastic Nylon
Function: Surge Protective
Grade: Commercial Specification Grade
NEMA: 5-15R

SPECIFICATIONS:

Electrical
Amperage: 15 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Self-Grounding
Pole: 2
Temperature Rise: Max 30C after 250 cycles OL at 200 percent rated current
Voltage: 125 VAC
Wire: 3

Environmental
Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 60°C

Material
Body Material: Thermoplastic Nylon
Clamp Nuts: Zinc-Plated Steel
Face Material: Thermoplastic Nylon
Ground Clips: Brass-Plated Steel
Grounding Screw: Brass-Plated Steel
Line Contacts: Brass Triple-Wipe
Shutter Mechanism: Delrin® Acetal
Terminal Screws: Brass-Plated Steel
Yoke: Zinc-Plated Steel

Mechanical
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back or Side Wire
Torque Range: 14-16 inch pounds

Performance Data
Diagnostics: Indicator Light & Audible Alarm
Joules Rating: 720
MCOV: 150V rms
Maximum Surge Current, Per Mode (Per Phase): 27kA (L-N:18kA, L-G:9kA)
Noise Rejection: -30dB at 500kHz-30MHz
Nominal Discharge Current Rating: 3kA
Short Circuit Current Rating: 5kA
VPR: L-N: 600V, L-G: 700V, N-G: 600V

Standards and Certifications
ANSI: C-73
Agency Certifications: UL 498, UL 1449 3rd Edition Listed and CSA C22.2 Certified Type 3
NEMA: WD-6
NOM: 057

Warranty
Product Warranty: 10-Year Limited
Please email us with the products you need and the details of your job at buyriteelectric@gmail.com
