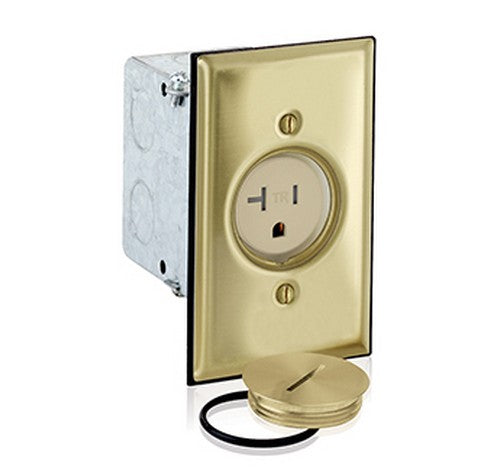

Leviton 5349-TFB Brass Finish Floor Box Tamper-Resistant Single Receptacle 20A / 125 VAC
2
sold in last
8
hours
5349-TFB
$69.95
customers are viewing this product
PRODUCT DESCRIPTION
Gang Floor Box Receptacle Assembly, 20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Single Receptacle, Tamper-Resistant, Straight Blade, Brass Floor plate & Screw Cap, Back & Side Wired, Steel Strap - IVORY
For low profile, in-floor receptacle installations, our Floor Box Receptacle Assemblies are the perfect fit. Available in both 15 & 20 Amp 1- and 2-gang configurations, these devices are suitable for wood frame construction with carpet, wood, tile, and vinyl finished flooring. Common applications include a variety of uses from home office workstations to high-end stages and entertainment venues.
FEATURES:
Amperage: 20 A
Color: Ivory
Feature: Tamper-Resistant
NEMA: 5-20R
Voltage: 125 VAC
SPECIFICATIONS:
AC Horsepower Ratings
At Rated Voltage: 1 HP
Electrical
Amperage: 20 A
Dielectric Voltage: Withstands 2000V per UL498
Pole: 2
Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
Voltage: 125 VAC
Wire: 3
Environmental
Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 75°C
Material
Body Material: Nylon
Cap Material: Brass
Face Material: Nylon
Floor plate Material: Solid Brass 0.060 In Thick
Grounding Screw: Steel
Line Contacts: Brass Triple-Wipe
Mounting Screws: Steel
Strap Material: Zinc-Plated Steel
Mechanical
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back & Side
Standards and Certifications
ANSI: C-73
Applicable Standards: UL 498, UL514A, CSA C22.2 No. 42, CSA C22.2 No 18.1-04
Certification/Listing: cCSAus, NOM-ANCE
NEMA: WD-1 & WD-6
Warranty
Warranty: 10-Year Limited
For low profile, in-floor receptacle installations, our Floor Box Receptacle Assemblies are the perfect fit. Available in both 15 & 20 Amp 1- and 2-gang configurations, these devices are suitable for wood frame construction with carpet, wood, tile, and vinyl finished flooring. Common applications include a variety of uses from home office workstations to high-end stages and entertainment venues.
FEATURES:
Amperage: 20 A
Color: Ivory
Feature: Tamper-Resistant
NEMA: 5-20R
Voltage: 125 VAC
SPECIFICATIONS:
AC Horsepower Ratings
At Rated Voltage: 1 HP
Electrical
Amperage: 20 A
Dielectric Voltage: Withstands 2000V per UL498
Pole: 2
Temperature Rise: Max 30C after 100 cycles OL at 150 percent rated current
Voltage: 125 VAC
Wire: 3
Environmental
Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 75°C
Material
Body Material: Nylon
Cap Material: Brass
Face Material: Nylon
Floor plate Material: Solid Brass 0.060 In Thick
Grounding Screw: Steel
Line Contacts: Brass Triple-Wipe
Mounting Screws: Steel
Strap Material: Zinc-Plated Steel
Mechanical
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Back & Side
Standards and Certifications
ANSI: C-73
Applicable Standards: UL 498, UL514A, CSA C22.2 No. 42, CSA C22.2 No 18.1-04
Certification/Listing: cCSAus, NOM-ANCE
NEMA: WD-1 & WD-6
Warranty
Warranty: 10-Year Limited
