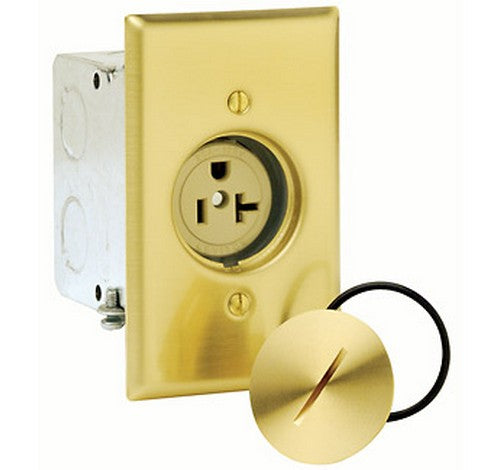

Leviton 5349-FBA Commercial Grade Straight Blade Floor Mounting Single Receptacle 20A / 125 VAC
2
sold in last
8
hours
5349-FBA
$55.00
customers are viewing this product
PRODUCT DESCRIPTION
Gang Floor Box Receptacle Assembly, 20 Amp, 125 Volt, NEMA 5-20R, 2P, 3W, Floor Mounting Single Receptacle, Straight Blade, Commercial Grade, Self Grounding, Side Wired, Steel Strap - IVORY
For low profile, in-floor receptacle installations, our Floor Box Assemblies are the perfect fit. Available in both 15 & 20 Amp configurations, these devices are suitable for wood frame construction with carpet and wood finished flooring, Common applications include a variety of uses from home office workstations to high-end stages and entertainment venues.
FEATURES:
Amperage: 20 A
Color: Ivory
Grounding: Self Grounding
NEMA: 5-20R
Voltage: 125 VAC
SPECIFICATIONS:
AC Horsepower Ratings
At Rated Voltage: 1/2 HP
Electrica
Amperage: 20 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Self Grounding
Pole: 2
Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
Voltage: 125 VAC
Wire: 3
Environmental
Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 60°C
Material
Body Material: Thermoplastic Nylon
Clamp Nuts: Zinc-Plated Steel
Color: Ivory
Face Material: Thermoplastic Nylon
Floorplate Material: Solid Brass
Ground Clips: Brass-Plated
Grounding Screw: Brass 8-32
Line Contacts: Brass Triple-Wipe .031 Thick
Strap Material: Zinc-Plated Steel
Terminal Screws: Brass 10-32
Mechanical
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Side
Standards and Certifications
ANSI: C-73
CSA C22.2 No. 42: File 152105
NEMA: WD-6
NOM: 057
UL498: File E13399
Warranty: 10 Year Limited
For low profile, in-floor receptacle installations, our Floor Box Assemblies are the perfect fit. Available in both 15 & 20 Amp configurations, these devices are suitable for wood frame construction with carpet and wood finished flooring, Common applications include a variety of uses from home office workstations to high-end stages and entertainment venues.
FEATURES:
Amperage: 20 A
Color: Ivory
Grounding: Self Grounding
NEMA: 5-20R
Voltage: 125 VAC
SPECIFICATIONS:
AC Horsepower Ratings
At Rated Voltage: 1/2 HP
Electrica
Amperage: 20 A
Current Limiting: Full Rated Current
Dielectric Voltage: Withstands 2000V per UL498
Grounding: Self Grounding
Pole: 2
Temperature Rise: Max 30C after 50 cycles OL at 150 percent rated current
Voltage: 125 VAC
Wire: 3
Environmental
Flammability: Rated V-2 per UL 94
Operating Temperature: -40°C to 60°C
Material
Body Material: Thermoplastic Nylon
Clamp Nuts: Zinc-Plated Steel
Color: Ivory
Face Material: Thermoplastic Nylon
Floorplate Material: Solid Brass
Ground Clips: Brass-Plated
Grounding Screw: Brass 8-32
Line Contacts: Brass Triple-Wipe .031 Thick
Strap Material: Zinc-Plated Steel
Terminal Screws: Brass 10-32
Mechanical
Product ID: Ratings are permanently marked on device
Terminal Accom.: 14-10 AWG
Terminal ID: Brass-Hot, Green-Ground, Silver-Neutral
Termination: Side
Standards and Certifications
ANSI: C-73
CSA C22.2 No. 42: File 152105
NEMA: WD-6
NOM: 057
UL498: File E13399
Warranty: 10 Year Limited
