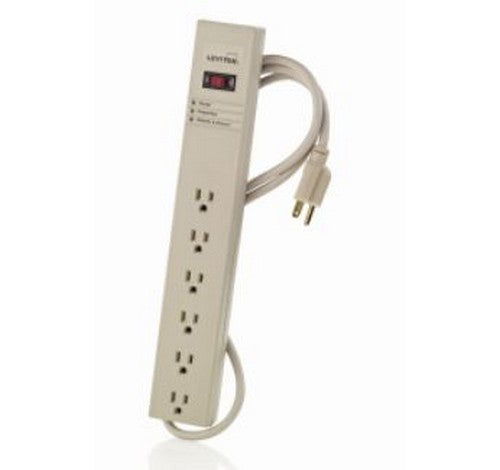

Leviton 5300-S15 15A Surge Protected 6-Outlet Strip With Switch Plus Data Sensitive And 15 Feet 14-3 SJT Cord Length Plastic Housing 125V AC

Leviton’s Surge Protection Devices can be used individually or as part of a coordinated application strategy, to protect sensitive electronic equipment, in industrial, commercial and residential locations, from the stress and degradation inflicted by voltage transients. Leviton Surge Protection Devices are compliant with UL 1449 Standards. Leviton’s outstanding Surge Protection Devices divert damaging voltage transients, or surges, away from electronic equipment. Transients are diverted away from sensitive micro circuitry, providing protection against catastrophic failure, costly downtime and data disruptions.

FEATURES:

Alarm: None
Amperage: 15 A
Application: Data-Sensitive Operations
Circuit Protection: Circuit Breaker & Internal Fusing
Circuitry: MOV-Based Suppression
Color: Beige
Cord Length: 6 Foot
Cord Length 14-3-SJT: 15 Feet
Diagnostics: PWR/Protection/Polarity
Duty: Data Sensitive
Frequency: 50/60Hz
Grade: Commercial
Housing Material: Plastic
Max Surge Current kA L-N: 48kA
Noise Rejection: 20 to 40 dB at 100kHz-300MHz
Number of Receptacles: 6
Standards and Certifications: UL1449, 1363 & 1283 / CSA / ANSI/IEEE Cat A&B
Surge Protection: Yes
Surge Technology: MOV
Type: 6-Outlet Strip w/Switch
UL1449 Impulse 6kV/500A L-N: 330V
Voltage: 125 VAC
Warranty: Lifetime Limited

SPECIFICATIONS:

Electrical
Amperage: 15 A
Cord Length: 6 Foot
Frequency: 50/60Hz
Number of Receptacles: 6
Operating Temperature: -10°C to 60°C
Surge Protection: Yes
Surge Technology: MOV
Voltage: 125 VAC

Environmental
Enclosure: Durable Thermoplastic
Operating Temperature: -10°C to 60°C
Material Specifications
Enclosure: Durable Thermoplastic
Joules Rating: 1620.0
MCOV: 130V
Maximum Surge Current: 96kA
Noise Filtering: -6 to -40 dB (@50K - 100 MHz)
Voltage Protection Rating (VPR) L-N, L-G, N-G: 500V, 600V, 500V

Performance Data
Alarm: None
Amperage: 15 A
Application: Data-Sensitive Operations
Circuit Protection: Circuit Breaker & Internal Fusing
Circuitry: MOV-Based Suppression
Color: Beige
Cord Length 14-3-SJT: 15 Feet
Diagnostics: PWR/Protection/Polarity
Duty: Data Sensitive
Housing Material: Plastic
Joules Rating: 1620.0
MCOV: 130V
Max Surge Current kA L-N: 48kA
Maximum Surge Current: 96kA
Noise Filtering: -6 to -40 dB (@50K - 100 MHz)
Noise Rejection: 20 to 40 dB at 100kHz-300MHz
Standards and Certifications: UL1449, 1363 & 1283 / CSA / ANSI/IEEE Cat A&B
Type: 6-Outlet Strip w/Switch
UL1449 Impulse 6kV/500A L-N: 330V
Voltage Protection Rating (VPR) L-N, L-G, N-G: 500V, 600V, 500V
Warranty: Lifetime Limited

Standards and Certifications
ANSI/IEEE Category A, B & C: C62.41.1, C62.41.2 & C62.45
Connected Equipment Warranty: Lifetime Limited Downline
UL1449 3rd Edition: cULus Listed
Warranty: Lifetime Limited
