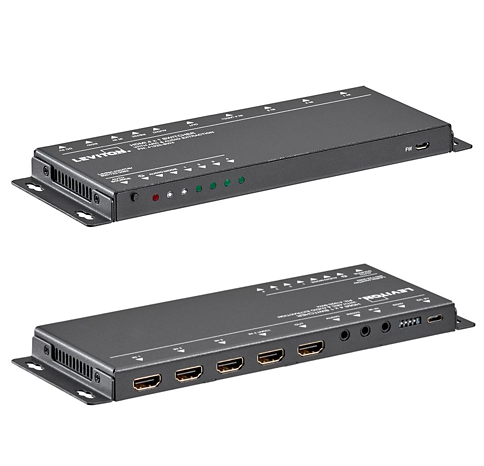

Leviton 41920-SW4 HDMI 4x1 Switcher 4k/60, Edid, Arc, Audio Extraction, HDCP 2.2, Ir, Rs-232

Automatically or manually switch between four different HDMI input sources for easy, fast selection of video content for display or projection in classrooms, conference rooms, control centers and public venues where reliable high-definition video is needed. The switcher allows for plug-and-play installation with simple HDMI cable connections. Auto switching mode enables completely automatic operation when video sources are activated. Manual switching is accomplished via the built-in control button. Control is also available via the included handheld IR remote or via an RS-232 command set for integration with a control system.

Features:

Switches any one of four HDMI inputs to one HDMI output
Automatic switching mode selects a new active input or when the active input is removed, selects the first active input on the lowest numbered port
Manual switching of HDMI inputs is accomplished via a front panel push-button
4K ultra-high-definition 4K x 2K at 60Hz 4:4:4 HDR 18Gbps
Compatible with and supports key features of HDMI 2.0 including CEC, EDID and HDCP2.2
Supports ARC audio return channel and audio extraction from the HDMI signal for connection to an external sound system
EDID management: multiple presets and user defined settings
Controllable via included IR remote or RS-232 command input
Compact and convenient 5VDC USB Type C power input with included power adapter and 1.5 m (5') USB Type A to Type C cable
Ultra slim design for easy installation in crowded spaces
