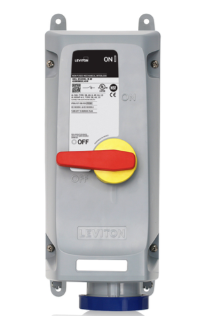

Leviton 4100MI9WLEV LEV Series Pin & Sleeve Interlock, Watertight, Non-Fused, 100A 240V 3PH, 3P 4W, Blue Finish

Leviton 4100MI9WLEV

4100MI9WLEV Product Description

Specifications:

Brand: Leviton
NEMA Rating: 3R, 4X, 12
Color: Blue
UV Resistance: UV stabilized F1 rated enclosure
Contact Material: Nickel-Plated Brass
Mold Stress Relief: 70 °C for 7 hours without deformation
RoHS Compliant: FALSE
Amperage: 100 A
Cold Impact: 5 ft-lb impact at -31 °F for 3 hrs per UL746C
Pole: 3
Voltage: 240 VAC
Gasket Material: Buna-N
Wire: 4
Series: LEV Series
Dielectric Voltage: 2200V for 1 minute
SCCR: 65kA (non-fused)
Country of Origin: Mexico
NSF: 14159-1, Hygenic Requirement for the Design of Meat & Poultry Processing Equipment
IP Rating: IP66, IP67, IP68, IP69, IP69K
Phase: 3-Phase
Crush Test: 100 lbs for 1 minute per surface
Horsepower Rating: 40HP
IEC Rating: IEC 60309-1, 60309-2, 60309-4
Housing Material: PBT+PC
Gasket Aging: 70 °C for 168 hr per UL50E
Operating Temperature: -40 °C to 75 °C
Flammability: Rated V-0 per UL 94
Housing Screws: 303 Stainless Steel
Endurance: 6,000 cycles under load
